In Stock
Add to Basket
SKU: HTDPB3014M170
HTD Timing Belt Pulleys
30-14M-170 HTD PULLEY PILOT BORE
£147.04
ex. VAT · £176.45 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured

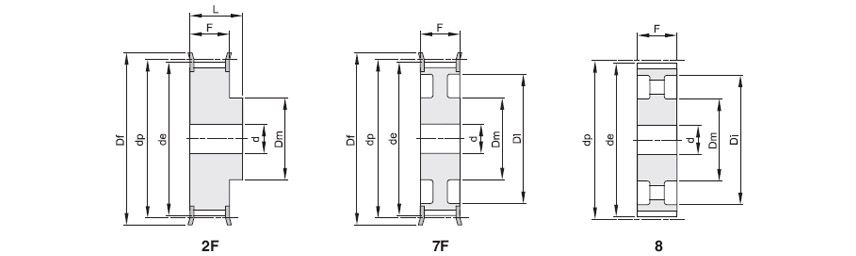

Technical Specifications
Number of Teeth
30
Pitch (mm)
14
Belt Width (mm)
170
Bore Type
Pilot Bore (Pre-bored)
Pitch Diameter (mm)
133.69
Outside Diameter (mm)
130.9
Face Width (mm)
190
Stock Pilot Bore (mm)
24
Max Re-Bore Diameter (mm)
75
Weight
16.7kg
Dimensions (L × W × H)
13.4 × 13.4 × 18.7 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | HTDPB3014M170 | Aroflex part number |
| Number of Teeth | 30 | |
| Pitch (mm) | 14 | |
| Belt Width (mm) | 170 | |
| Bore Type | Pilot Bore (Pre-bored) | |
| Pitch Diameter (mm) | 133.69 | |
| Outside Diameter (mm) | 130.9 | |
| Face Width (mm) | 190 | |
| Stock Pilot Bore (mm) | 24 | |
| Max Re-Bore Diameter (mm) | 75 | |
| Weight | 16.7 kg | |
| Dimensions | 13.4 × 13.4 × 18.7 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Certification | ISO 9001:2015 | Quality assured |
30-14M-170 HTD Pilot Bore Timing Pulley
The ultra-wide 30-14M-170 HTD Timing Pulley brings reliable, zero-slip positive drive engagement to high-capacity mechanical power setups. Spreading severe torque load spikes uniformly across an extreme 170mm wide synchronous belt face, its deep 14mm curvilinear teeth prevent mechanical timing slippage or ratcheting. Featuring an unmachined pilot bore center hub, it allows engineers to customize the core precisely to unique shaft constraints.
Product Features & Specifications
- Tooth Configuration: 30 heavy-duty industrial precision-machined teeth.
- Pitch & Belt Width: Large-scale 14M tooth spacing with deep curvilinear profiling for 170mm belts.
- Bore Status: Unbored stock hub with a small pilot hole to facilitate clean lathe centering.
- Industrial Build Quality: Fabricated from robust solid Steel (St) or durable Cast Iron (GG).
- Boring & Keying Readiness: Provided in standard raw stock configuration. Tailor the internal bore sizes directly to your shafts via our In-House Machining Services.
