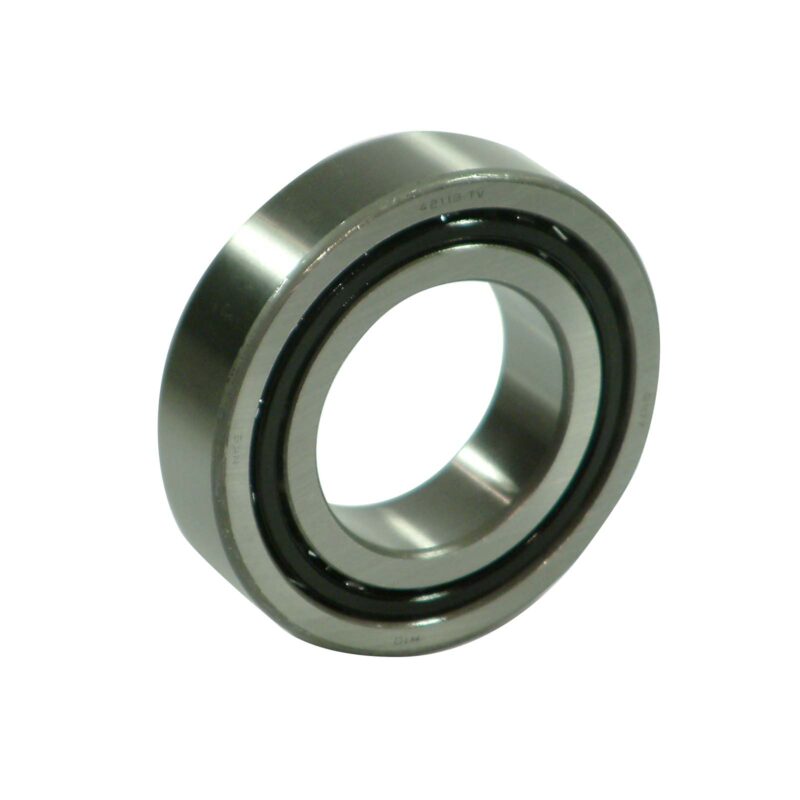

4200B.TV.C3 Double Row Deep Groove Ball Bearing
£10.90
| Parameter | Value | Notes |
|---|---|---|
| SKU | 4200B.TV.C3 | Aroflex part number |
| Weight | 0.06 kg | |
| Dimensions | 3 × 1.4 × 3 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
4200B.TV.C3 Double Row Deep Groove Ball Bearing has a similar design to Single Row Deep Groove Ball Bearings, except it has two parallel deep grooves and high conformity between the balls and the raceways – meaning it has a higher radial and axial load than Single Rows. Although the diameter and bore sizes are the equivalent to Single Rows. The suffix TV indicates this bearing has a solid cage made of Polyamide, snap-type cage, rolling element guided. C3 = this bearing has a Radial internal clearance greater than normal (to allow for heat expansion).
Particularly suited for applications where the load bearing capacity from a Single Row would be inadequate. For a step-by-step guide to measuring a bearing click here. If you need any expert advice on which bearing to select or any other queries then please don’t hesitate to contact us.
