53306 Thrust Ball Bearing
£42.44
| Parameter | Value | Notes |
|---|---|---|
| SKU | 53306 | Aroflex part number |
| Weight | 0.27 kg | |
| Dimensions | 6 × 6 × 2.26 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |

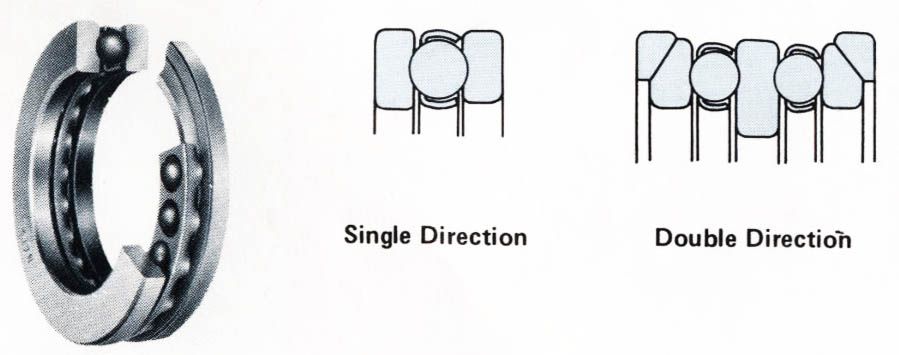

53306 Thrust Ball Bearing has one row of balls running between the shaft ring and the housing ring and can take high thrust loads – however, it is not designed to carry radial loads or operate at high speeds. Consisting of three main parts; a housing washer, a shaft and a caged ball bearing assembly. Benefits of using Thrust Ball Bearings include simple mounting and assembly plus axial loading.
Inside Diameter = 140mm, Outside Diameter = 200mm, Width = 48.6mm
Suited for applications such as Rail & Transport, Agricultural & Mining, Heavy Engineering, Steel Rolling & Transmissions. For a step-by-step guide to measuring a bearing click here. If you need any expert advice on which bearing to select or any other queries then please don’t hesitate to contact us.
