In Stock

Add to Basket

Workshop Add Bore & Keyway Service

+ £0.00 (£0.00 each)

Order total (product + machining): £32.42

Price varies by bore size and Bore Qty (per machined hub).

Bore size (Hub 1)

Bore size (Hub 2)

Bore Qty (machined items)

Max equals product quantity.

Please Confirm any Additional Machining Details Required (optional)

Keyway size (optional)

Price Breakdown

Up to 25mm (0.984") – (£15)
Up to 40mm (1.575") – (£20)
Up to 60mm (2.362") – (£30)
Over 60mm (2.362"+) – (£45)

Quantity Discount Breakdown

1 to 5 items: No discount
6 to 9 items: 10% off
10 to 19 items: 15% off
20 to 49 items: 20% off
50 to 99 items: 25% off
100+ items: 30% off

SKU: HTDTL568M20 HTD Timing Belt Pulleys

56-8M-20 HTD PULLEY TL 2012

Name: 56-8M-20 HTD Pulley TL 2012 | UK Stock | Arrow Engineering
SKU: HTDTL568M20
Price: 32.42 GBP
Availability: InStock

£32.42

ex. VAT · £38.90 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

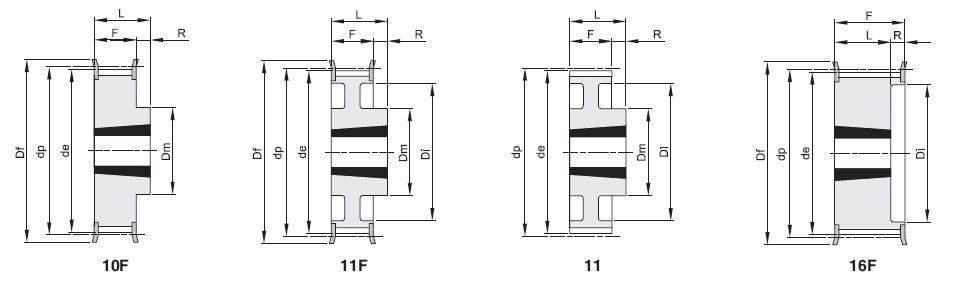

Technical Specifications

Number of Teeth

Pitch (mm)

Belt Width (mm)

Taper Lock Bushing

2012

Pitch Diameter (mm)

142.6

Outside Diameter (mm)

141.23

Face Width (mm)

Min Bore (mm)

Max Bore (mm)

Weight

2.75kg

Dimensions (L × W × H)

14 × 14 × 2.8 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	HTDTL568M20	Aroflex part number
Number of Teeth	56
Pitch (mm)	8
Belt Width (mm)	20
Taper Lock Bushing	2012
Pitch Diameter (mm)	142.6
Outside Diameter (mm)	141.23
Face Width (mm)	28
Min Bore (mm)	14
Max Bore (mm)	50
Weight	2.75 kg
Dimensions	14 × 14 × 2.8 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

56-8M-20 HTD Timing Pulley c/w TL 2012 Taper Lock Bush Bore

The mid-scale 56-8M-20 HTD Timing Pulley strikes an excellent balance between mechanical advantage and compact design footprint. Meshing tightly with 20mm wide timing belts via its 56 curvilinear teeth, it secures total power translation without slip. It incorporates a standard taper bore engineered to lock onto shafts with a TL 2012 Taper Lock bush.

Product Features & Specifications

Tooth Configuration: 56 heavy-duty precision-machined teeth.
Pitch & Belt Width: 8mm industrial pitch profile designed for 20mm wide timing belts.
Shaft Mounting System: Designed to fit standard TL 2012 Taper Lock interlocking bushes.
Industrial Build Quality: Crafted from heavy-duty structural Cast Iron (GG) or Steel (St).
Boring & Keying Readiness: Provided in standard raw stock configuration. Tailor the internal bore sizes directly to your shafts via our In-House Machining Services.
