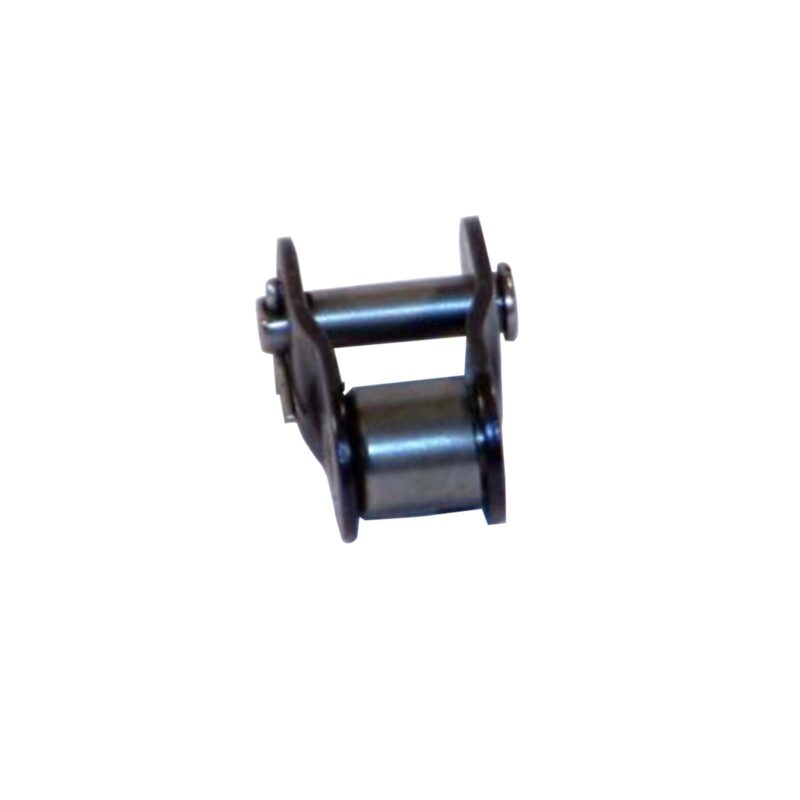

60.SS Single Crank Link For Stainless Steel Chain
60.SS Single Crank Link For Stainless Steel Chain manufactured from AISI 304 austenitic stainless steel to ANSI B29.1 / ASME B29.1M / ISO 606 (12A-SS) specifications. Outstanding corrosion resistance, food-grade/FDA compliant, rated tensile strength 22.0 kN (4,950 lbf). Operating temperature -40°C to +400°C.
£24.45
| Parameter | Value | Notes |
|---|---|---|
| SKU | 60.SS.SCRANK | Aroflex part number |
| Product Type | Stainless Steel Single Crank Link (Offset Half-Link) | |
| Chain Series / Size | ANSI 60 Stainless Steel | |
| Standard Family | American Standard (ANSI / ASME B29.1) | |
| Strand Configuration | Single Strand (Simplex) | |
| Manufacturing Standard | ANSI B29.1 / ASME B29.1M / ISO 606 (12A-SS) | |
| Pitch (P) | 19.05 mm (0.750 in / 3/4") | |
| Roller Diameter (d1) | 11.91 mm (0.469 in) | |
| Inner Width (b1) | 12.70 mm (0.500 in / 1/2") | |
| Pin Diameter (d2) | 5.94 mm (0.234 in) | |
| Plate Height (h2) | 18.00 mm (0.709 in) | |
| Plate Thickness (T) | 2.42 mm (0.095 in) | |
| Tensile Strength (Min) | 22.0 kN (4, 950 lbf) | |
| Material Grade | AISI 304 (18-8 / SUS304) Stainless Steel | |
| Corrosion & Temp Range | Acid, alkali, washdown & salt spray resistant; -40°C to +400°C (-40°F to +752°F) | |
| Unit / Package Type | Each | |
| Weight | 0.5 kg | |
| Certification | ISO 9001:2015 | Quality assured |
The 60.SS Single Crank Link For Stainless Steel Chain (offset half-link) allows precision single-pitch (19.05 mm (0.750 in / 3/4″)) length adjustments on ANSI 60 Stainless Steel Single Strand (Simplex) Roller Chains. Built from corrosion-resistant AISI 304 stainless steel in compliance with ANSI B29.1 / ASME B29.1M / ISO 606 (12A-SS), it provides the ideal solution for fixed center-distance conveyors requiring fine chain tensioning.
Key Technical Specifications & Advantages
- Precision Chain Tensioning: Enables adding or subtracting an odd number of pitches (19.05 mm (0.750 in / 3/4″)) to eliminate chain slack on fixed center conveyors where take-up frames cannot be installed.
- All-Stainless Steel Construction: Formed entirely from AISI 304 stainless steel side plates, hardened pin, and fastener clip.
- Hygienic & Corrosion Proof: Fully resistant to corrosion, oxidation, and chemical washdowns across pharmaceutical and food handling environments.
- Matched Dimensions: Precision formed to 19.05 mm (0.750 in / 3/4″) pitch, 12.70 mm (0.500 in / 1/2″) inner width, and 11.91 mm (0.469 in) roller/bushing diameter.
Operating Recommendation
Recommended for intermediate tension adjustments in food conveyor, packaging line, and washdown environments.
