6213.TB.P63 Single Row Deep Groove Ball Bearing
£109.18
| Parameter | Value | Notes |
|---|---|---|
| SKU | 6213TB.P63 | Aroflex part number |
| Weight | 1 kg | |
| Dimensions | 1.2 × 1.2 × 0.23 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
Competitor Interchange Finder
Enter a competitor part number to find live pricing and the AROFLEX equivalent.
Results will appear here…

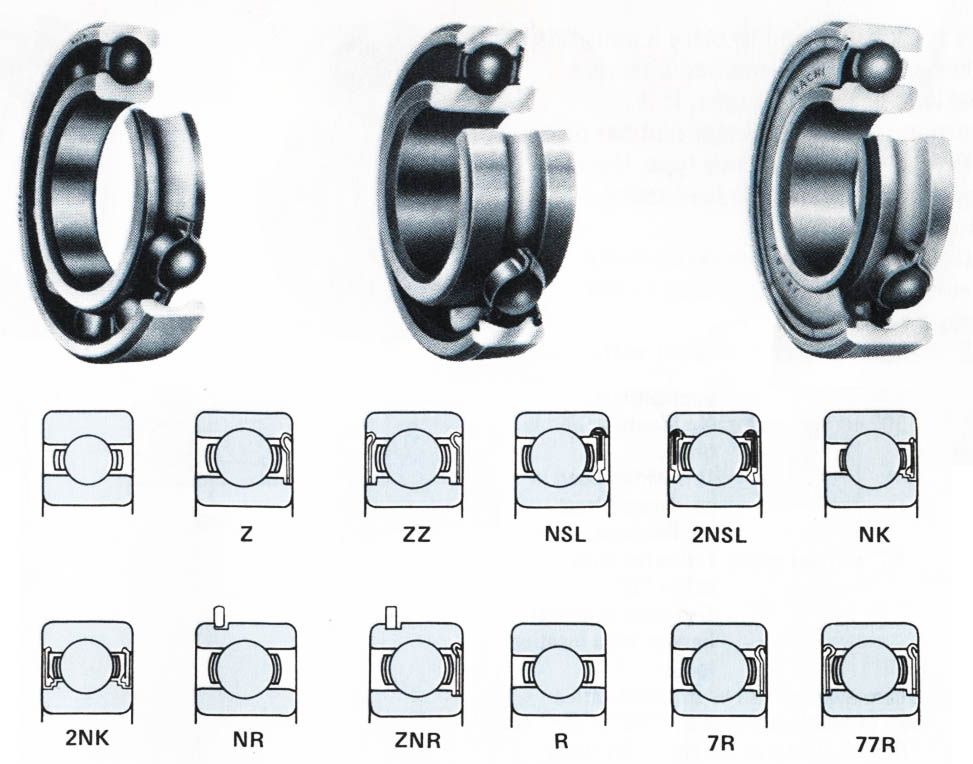

6213.TB.P63 Single Row Deep Groove Ball Bearing is a type of bearing that is the most economical and commonly used ball bearing. Under normal operating conditions the grease initially packed into the bearing will provide long trouble-free service. These bearings can sustain both radial thrust loads in any direction and perform well over a wide speed range. The suffix TB means that this is a bearing contains a window-type cage of fabric reinforced Phenolic Resin, with the Inner Ring centred. P63 = that this bearing has the Tolerance P6 and a Radial internal clearance greater than normal (to allow for heat expansion). For further information regarding seals and shields please click here.
Used widely in Transmissions, other typical applications include; Manufacturing, Agricultural & Pumps, Marine & Shipping, General Engineering. For a step-by-step guide to measuring a bearing click here. If you need any expert advice on which bearing to select or any other queries then please don’t hesitate to contact us.
