SKU: HTDTL805M15 HTD Timing Belt Pulleys

80-5M-15 HTD PULLEY TL 1610

Name: 80-5M-15 HTD Pulley TL 1610 | UK Stock | Arrow Engineering
SKU: HTDTL805M15
Price: 20.85 GBP
Availability: InStock

£20.85

ex. VAT · £25.02 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

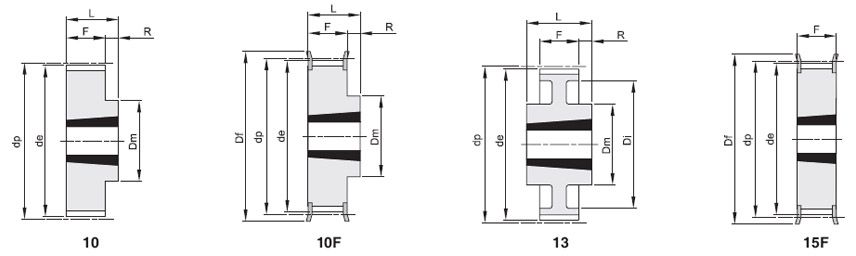

Technical Specifications

Number of Teeth

Pitch (mm)

Belt Width (mm)

Taper Lock Bushing

1610

Pitch Diameter (mm)

127.32

Outside Diameter (mm)

126.18

Face Width (mm)

Min Bore (mm)

Max Bore (mm)

Weight

2.6kg

Dimensions (L × W × H)

12.6 × 12.6 × 2.2 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	HTDTL805M15	Aroflex part number
Number of Teeth	80
Pitch (mm)	5
Belt Width (mm)	15
Taper Lock Bushing	1610
Pitch Diameter (mm)	127.32
Outside Diameter (mm)	126.18
Face Width (mm)	22
Min Bore (mm)	14
Max Bore (mm)	42
Weight	2.6 kg
Dimensions	12.6 × 12.6 × 2.2 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

80-5M-15 HTD Timing Pulley c/w TL 1610 Taper Lock Bush Bore

The heavy-duty 80-5M-15 HTD Timing Pulley is engineered to provide smooth reduction ratios and reliable speed tracking. With 80 deep curvilinear teeth tracking a 5mm pitch profile alongside a 15mm wide timing belt, it offers an extended contact footprint to completely remove drive slippage. The core features a precision taper bored for standard TL 1610 Taper Lock bushes.

Product Features & Specifications

Tooth Configuration: 80 precision-machined HTD teeth.
Pitch & Belt Width: 5mm high-torque pitch geometry optimized for 15mm wide synchronous belts.
Shaft Mounting System: Designed for standard TL 1610 Taper Lock interlocking bushes.
Industrial Build Quality: Fabricated using premium-grade solid Steel (St).
Boring & Keying Readiness: Provided in standard raw stock configuration. Tailor the internal bore sizes directly to your shafts via our In-House Machining Services.
