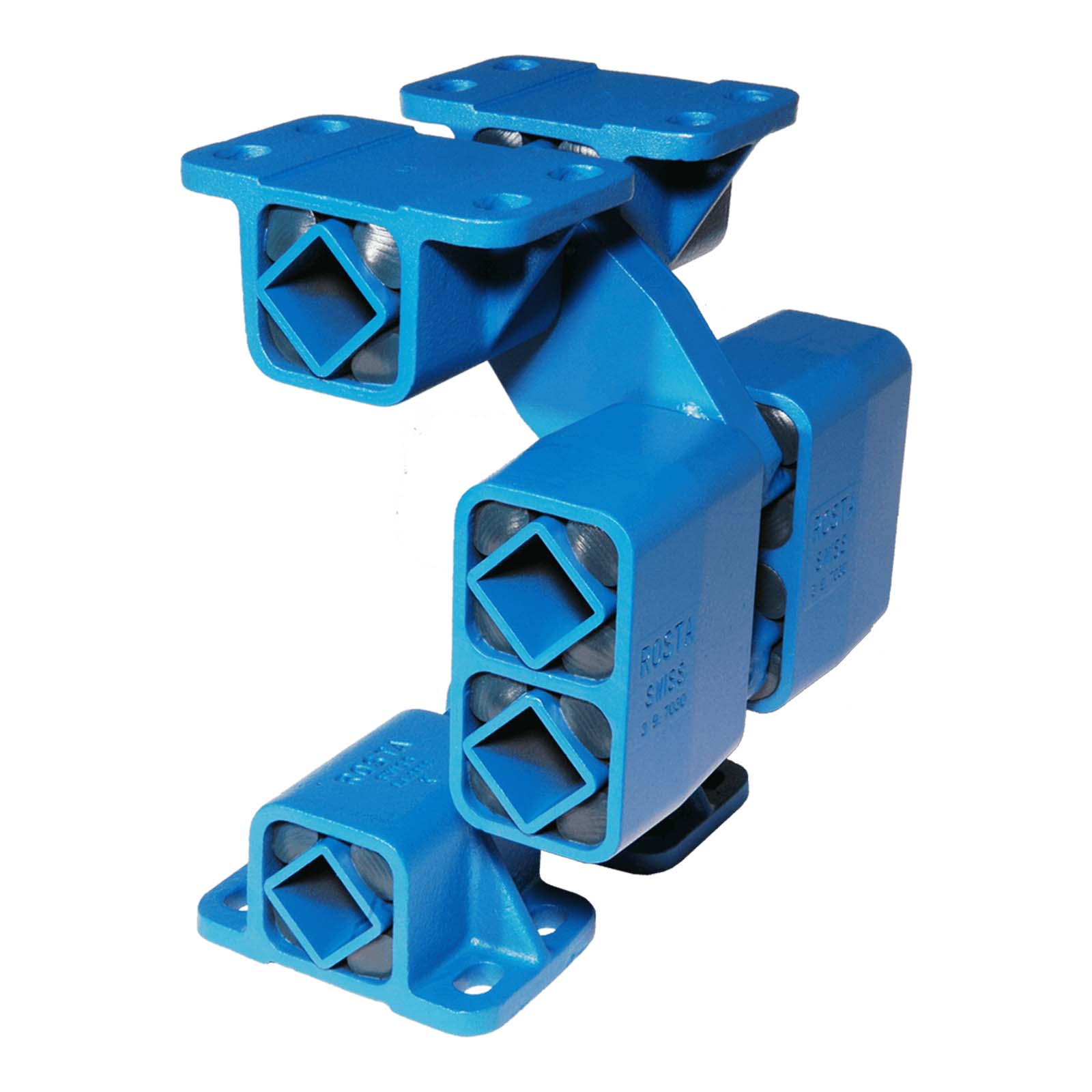

AB 50-2 Rosta Oscillating Mount
£731.28
| Parameter | Value | Notes |
|---|---|---|
| SKU | AB-50-2 | Aroflex part number |
| Product Type | Oscillating Screen Mount | |
| Component Series | ROSTA AB Oscillating Mount | |
| Model Size | AB 50-2 | |
| Mounting Screw | M16 Mounting Bolts (Top & Bottom Flanges) | |
| Pretension Angle | ±5° Dynamic Oscillating Angle | |
| Tensioning Force | 000 N, 500 N - 6, Nominal Dynamic Load 3 | |
| Arm Length | Overall Height ~200 mm | |
| Chain / Belt Pitch | Vibrating Screens & Feeders | |
| Number of Teeth | N/A | |
| Roller Dimensions | N/A | |
| Bearing Spec | 4 x High-Elasticity Rubber Torsion Inserts | |
| Material & Finish | Galvanized Steel Flanges, Heavy Ductile Cast Iron Arms | |
| Compatible Units | Conveyor Troughs, Feeders, Separators, Vibrating Screens | |
| Operating Temp | -40°C to +80°C (-40°F to +176°F) | |
| Weight | 31.8 kg | |
| Certification | ISO 9001:2015 | Quality assured |
The ROSTA AB 50-2 Oscillating Mount is a heavy-duty, maintenance-free elastic suspension element engineered specifically for free-oscillating screens, vibrating conveyors, dewatering screens, and feeder troughs. Utilizing ROSTA’s proprietary elastomeric rubber torsion spring technology, the AB 50-2 provides exceptional dynamic isolation (>95%), absorbing lateral forces while guiding oscillating masses along a linear trajectory.
Key Technical Specifications & Advantages
- High Load Capacity: Nominal dynamic load capacity of Nominal Dynamic Load 3,500 N – 6,000 N per mount.
- Superior Vibration Isolation: High dampening efficiency isolates dynamic forces from the building structure or support foundation, protecting adjacent machinery.
- Long Service Life: Four high-tensile rubber torsion inserts absorb high dynamic amplitudes without fatigue, outlasting conventional helical coil springs.
- High Lateral Stability: Restricts lateral swaying during machine start-up, shut-down, and resonance transitions without requiring auxiliary dampers.
- Heavy-Duty Construction: Manufactured from Heavy Ductile Cast Iron Arms, Galvanized Steel Flanges with M16 Mounting Bolts (Top & Bottom Flanges) for rigid bolting.
- Wide Operating Temperature: Performs reliably from -40°C to +80°C (-40°F to +176°F).
Primary Applications
Widely specified on quarry screening plants, aggregate vibrating tables, grain de-stoners, recycling sorting screens, and heavy bulk material vibratory conveyors.
