In Stock

AROFLEX ATL Friction Disc Torque Limiter 42-2

Add to Basket

Workshop Add Bore & Keyway Service

+ £0.00 (£0.00 each)

Order total (product + machining): £98.13

Price varies by bore size and Bore Qty (per machined hub).

Bore size (Hub 1)

Bore size (Hub 2)

Bore Qty (machined items)

Max equals product quantity.

Please Confirm any Additional Machining Details Required (optional)

Keyway size (optional)

Price Breakdown

Up to 25mm (0.984") – (£15)
Up to 40mm (1.575") – (£20)
Up to 60mm (2.362") – (£30)
Over 60mm (2.362"+) – (£45)

Quantity Discount Breakdown

1 to 5 items: No discount
6 to 9 items: 10% off
10 to 19 items: 15% off
20 to 49 items: 20% off
50 to 99 items: 25% off
100+ items: 30% off

SKU: ATL 42-2 ATL Friction Disc Torque Limiter

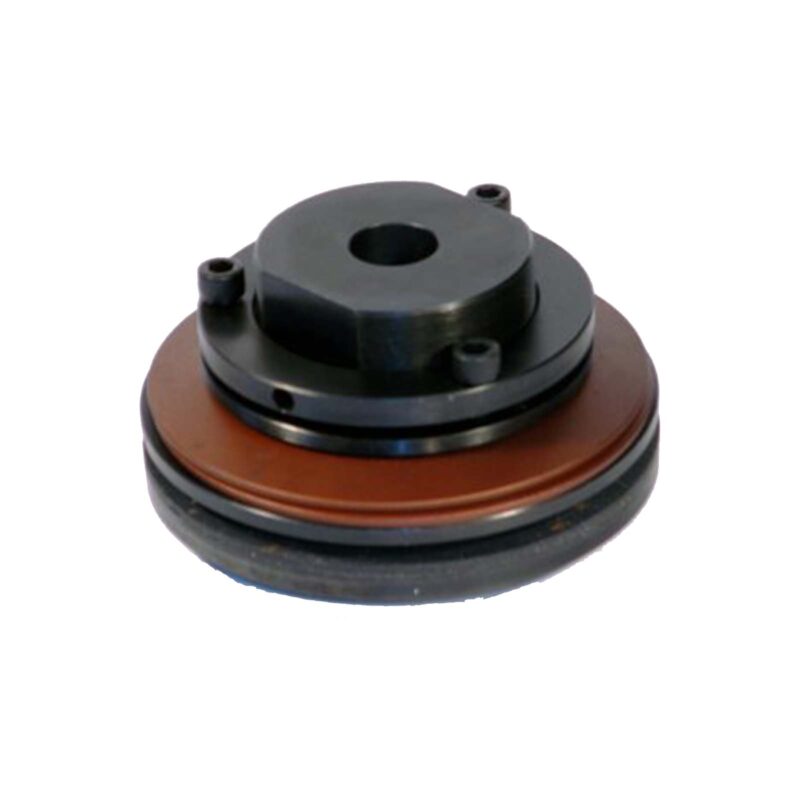

AROFLEX ATL Friction Disc Torque Limiter 42-2

Name: AROFLEX ATL 42-2 Friction Disc Torque Limiter | UK Stock | Arrow Engineering
SKU: ATL 42-2
Price: 98.13 GBP
Availability: InStock

A fully resettable mechanical fuse designed to protect drive systems from shock loads and jams by slipping when a pre-set torque is exceeded.

£98.13

ex. VAT · £117.76 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Bore (mm)

Torque (Nm)

90-550

DBSE (mm)

3.0

Keyway Standard

JS9 Tight Fit Anti-Roll

Weight

3.858kg

Dimensions (L × W × H)

12.7 × 12.7 × 7.6 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	ATL 42-2	Aroflex part number
Bore (mm)	38
Torque (Nm)	90-550
DBSE (mm)	3.0
Keyway Standard	JS9 Tight Fit Anti-Roll
Weight	3.858 kg
Dimensions	12.7 × 12.7 × 7.6 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

Operating as a slow-blow solution, the ATL utilises spring-loaded friction surfaces that slip against a centre member when the load exceeds the defined torque limit. Unlike positive disconnect limiters, the drive stays connected during an overload, continuing to slip and exert torque until the prime mover stops or the jam clears. Best suited for high-inertia starts, occasional nuisance slips, and applications where a temporary bump should not stop the entire production line.
