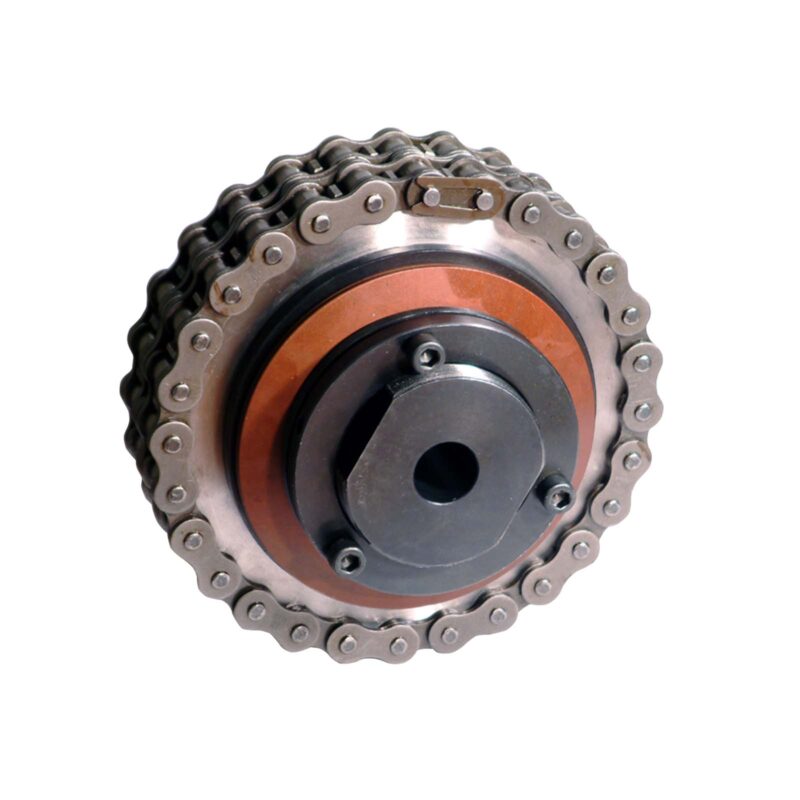

ATLC 64-1/C Torque Limiter Chain Coupling c/w 1″ Pitch 28 tooth sprocket and platewheel – Aroflex Torque Limiter Chain Couplings consist of a Sprocket, Torque Limiter and Platewheel connected by a length of duplex Roller Chain. This low cost Torque Limiter Coupling provides a shaft to shaft connection drive with overload protection.
ATLC 64-1/C Torque Limiter Chain Coupling c/w 1″ Pitch 28 tooth sprocket and platewheel
£617.76 (£514.80 ex. VAT)
| Weight | 0.1 kg |
|---|
Only logged in customers who have purchased this product may leave a review.
| Length | 168.1mm |
|---|---|
| Max Bore | 64mm |
| Outer Diameter | 247.5mm |
| Torque Limiter Maximum Bore | 64 |
| Torque Rating Maximum | 569.77 |
| Torque Rating Minimum | 115.72 |
