Half Coupling H Type Taper Bore (HRCE110)

Name: Half Coupling H Type Taper Bore (HRCE110) | UK Stock | Arrow Engineering
SKU: HRCE110
Price: 12.48 GBP
Availability: InStock

£12.48

ex. VAT · £14.98 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Bush Size

1610

F/H Hub Bore Max (mm)

F/H Hub Bore Min (mm)

Hub Length C (mm)

Hub Bore Depth D (mm)

Overall Diameter OA (mm)

112

Max Speed (RPM)

5630

Torque Rating Normal (Nm)

160

Torque Rating Maximum (Nm)

360

Weight (kg)

Weight

5kg

Dimensions (L × W × H)

11.2 × 11.2 × 11.2 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	HRCE110	Aroflex part number
Bush Size	1610
F/H Hub Bore Max (mm)	42
F/H Hub Bore Min (mm)	14
Hub Length C (mm)	19
Hub Bore Depth D (mm)	27
Overall Diameter OA (mm)	112
Max Speed (RPM)	5630
Torque Rating Normal (Nm)	160
Torque Rating Maximum (Nm)	360
Weight (kg)	5
Weight	5 kg
Dimensions	11.2 × 11.2 × 11.2 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

Half Coupling H Type Taper Bore (HRCE110)

H Type Taper Bore Half Coupling — Elastomeric Shaft Coupling Series

The HRCE110 is an H Type taper bore half coupling hub manufactured from Cast Iron EN-GJL-250 UNI EN 1561. Designed as part of the elastomeric shaft coupling taper bore series, it provides a secure and precise connection for RFC110 semi-elastic flexible coupling assemblies. The taper bore design (tapering from the outside) ensures a firm, concentric fit onto the shaft via a Taper Lock bush.

Key Benefits & Features

Premium Material: Cast Iron EN-GJL-250 UNI EN 1561 for durability and long service life.
H Type Taper Bore: Taper bore tapering from the outside for precise shaft engagement.
Taper Lock Bush Fixing: Fast assembly and removal without specialist tooling.
In-House Machining Available: We can bore and key this hub to your shaft specification before dispatch.

Key Specifications

Bush Size: 1610
F/H Hub Bore Max: 42 mm
F/H Hub Bore Min: 14 mm
Hub Length C: 19 mm
Hub Bore Depth D: 27.0 mm
Overall Diameter OA: 112 mm
Max Speed: 5630 RPM
Normal Torque Rating: 160 Nm
Maximum Torque Rating: 360 Nm
Weight: 5.00 kg

Compatible With

RFC110 Complete Coupling
HRCE110 F Type and B Type Hubs

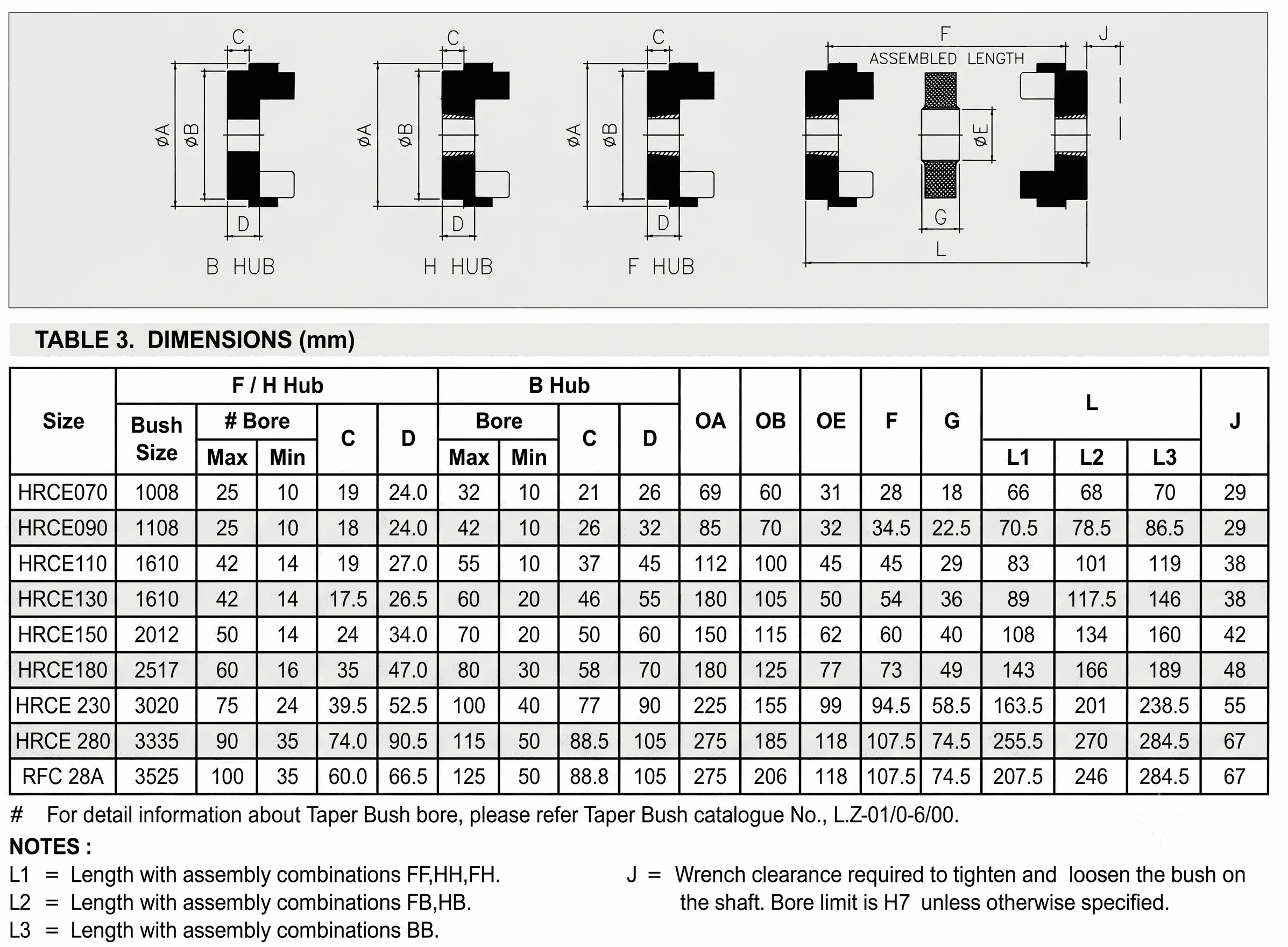

*J = Clearance required for the allen key for tightening and loosening the bush onto the shaft.

For custom bore and keyway machining to your shaft size, see our in-house engineering service.
