In Stock
Looking for a Rotex or Fenner equivalent? Use our Interchange Finder below.
SKU: LM10-100.COMPLETE
Complete Standard Metallic Disc Spacer Couplings

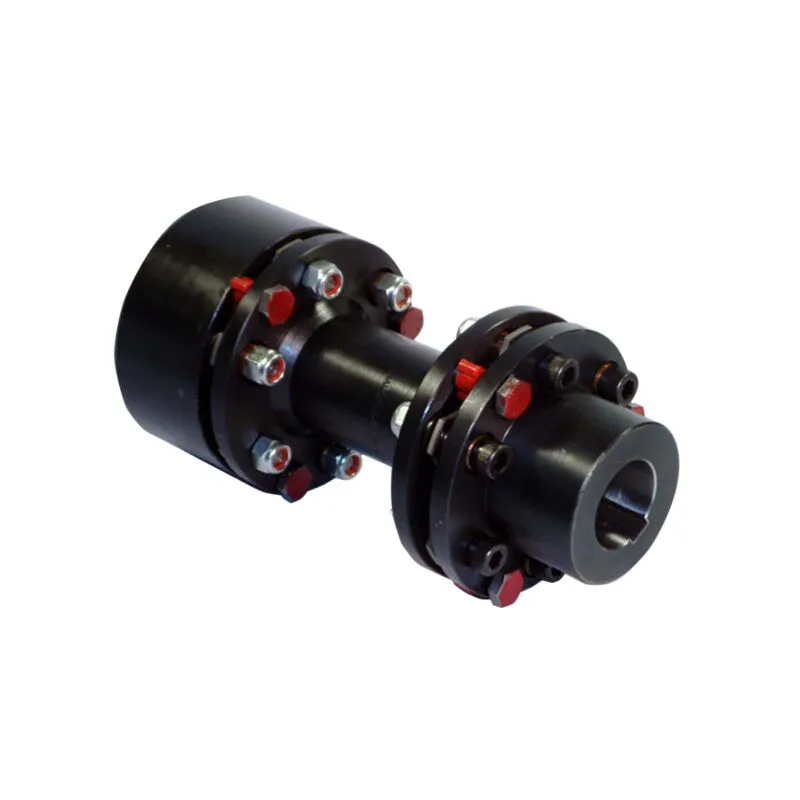

LM10 100mm DBSE Complete Spacer Coupling
Original price was: £148.20.£111.15Current price is: £111.15.
ex. VAT · £133.38 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
DBSE
100mm
Max. Bore Hub Type 1
24
Max. Bore Hub Type 2
25
Coupling O.D.
63
kW rating per RPM
0.006666666667
kW rating @ 1450 RPM
9.666666667
kW rating @ 3000 RPM
20
Weight
0.05kg
Dimensions (L × W × H)
16 × 6.3 × 16 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | LM10-100.COMPLETE | Aroflex part number |
| DBSE | 100mm | |
| Max. Bore Hub Type 1 | 24 | |
| Max. Bore Hub Type 2 | 25 | |
| Coupling O.D. | 63 | |
| kW rating per RPM | 0.006666666667 | |
| kW rating @ 1450 RPM | 9.666666667 | |
| kW rating @ 3000 RPM | 20 | |
| Weight | 0.05 kg | |
| Dimensions | 16 × 6.3 × 16 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
Competitor Interchange Finder
Enter a competitor part number to find live pricing and the AROFLEX equivalent.
Results will appear here…
LM10 100mm DBSE Complete Spacer Coupling
Please also see our In-House Machining Services for your boring/keying needs.
Add to Basket
