Machine Mount 200mm x 165mm (M20)

Name: Machine Mount 200mm x 165mm (M20) | UK Stock | Arrow Engineering
SKU: PB-PM-4
Price: 128.60 GBP
Availability: InStock

£128.60

ex. VAT£154.32 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Mount Type

Adjustable Machine Leveling Mount

Fastener / Thread Size

M20

Stiffness / Shore Hardness

60 Shore A (Medium)

Material Composition

Cast Iron Housing / Nitrile Base / High-Tensile Steel Spindle

Loading Mode

Heavy Static Compression & Leveling

Dimensions / Footprint

200mm x 165mm

Weight

0.2kg

Dimensions (L × W × H)

20 × 20 × 16.5 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PB-PM-4	Aroflex part number
Mount Type	Adjustable Machine Leveling Mount
Fastener / Thread Size	M20
Stiffness / Shore Hardness	60 Shore A (Medium)
Material Composition	Cast Iron Housing / Nitrile Base / High-Tensile Steel Spindle
Loading Mode	Heavy Static Compression & Leveling
Dimensions / Footprint	200mm x 165mm
Weight	0.2 kg
Dimensions	20 × 20 × 16.5 cm	Overall envelope
Certification	ISO 9001:2015	Quality assured

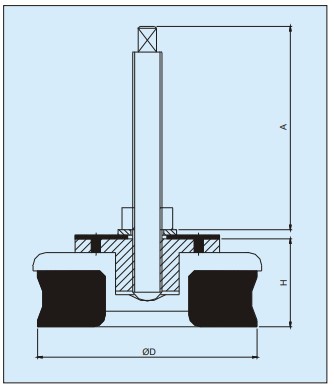

The Machine Mount 200mm x 165mm (M20) (SKU: PB-PM-4) is a heavy-duty machine leveling mount (200mm x 165mm, M20) engineered for immediate machine commissioning without ground anchoring or grouting. Its precision height adjustment spindle allows millimetric leveling while the elastomeric foundation isolates dynamic cutting vibrations on CNC machining centers, presses, and lathes.
