SKU: NPX-080-4T
NPX Taper Bored
NPX 080T Part 4 Taper Bore Hub (1108)
£91.90
ex. VAT · £110.28 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Power at 100 rev/min kW
0.63
Rated Torque Nm
60
Max Torque Nm
180
Max Speed rev/min
5210
Bush for F flange
1108
Max Bore d1/d2 (mm)
32
D (mm)
80
L2 (mm)
22.5
C (mm)
22.5
Weight Part 4 (kg)
0.94
Weight
0.1kg
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | NPX-080-4T | Aroflex part number |
| Power at 100 rev/min kW | 0.63 | |
| Rated Torque Nm | 60 | |
| Max Torque Nm | 180 | |
| Max Speed rev/min | 5210 | |
| Bush for F flange | 1108 | |
| Max Bore d1/d2 (mm) | 32 | |
| D (mm) | 80 | |
| L2 (mm) | 22.5 | |
| C (mm) | 22.5 | |
| Weight Part 4 (kg) | 0.94 | |
| Weight | 0.1 kg | |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |

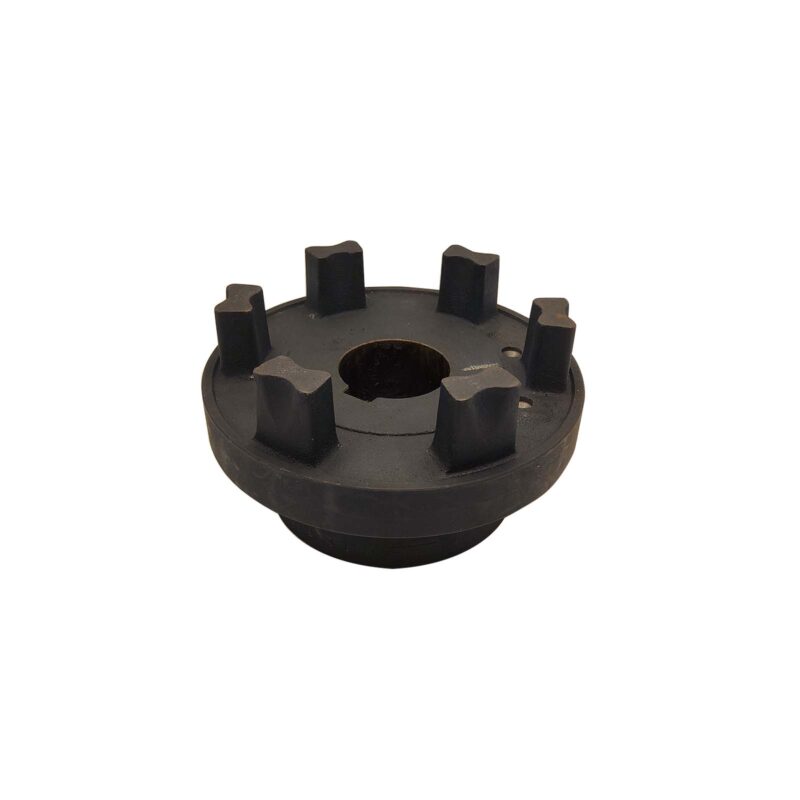

NPX 080T Part 4 Taper Bore Hub (1108)
The NPX 080T Part 4 Taper Bore Hub acts as the precision-matched mating side within the flexible coupling configuration. Pre-machined to accept a standard 1108 taper lock bush, this Part 4 component offers rapid installation and absolute concentricity on the driven shaft. It links directly with the Part 1 hub through a resilient insert, managing torque transmission cleanly while compensating for multi-directional shafts misalignments across harsh operating environments.
Key Features
- 1108 Taper Bush Interface: Ensures a tight, clean shrink-fit connection without requiring time-consuming keyway machining.
- Part 4 Mating Component: Pairs smoothly with counterpart assemblies to establish complete power transmission loops.
- Fail-Safe Structure: Interlocking jaw design provides an added layer of operational safety under demanding drive cycles.
- Heavy-Duty Compound: High material integrity guarantees superior resistance against axial shocks and physical wear.
Technical Specifications & Dimensions
