SKU: NPX-095-1T
NPX Taper Bored
NPX 095T Part 1 Taper Bore Hub (1210)
£115.40
ex. VAT · £138.48 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Power at 100 rev/min kW
1.05
Rated Torque Nm
100
Max Torque Nm
300
Max Speed rev/min
5210
Bush for F flange
1210
Max Bore d1/d2 (mm)
32
D (mm)
95
L1 (mm)
26.5
A (mm)
76
Weight Part 1 (kg)
1.3
Weight
1.3kg
Dimensions (L × W × H)
9.5 × 2.65 × 2.65 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | NPX-095-1T | Aroflex part number |
| Power at 100 rev/min kW | 1.05 | |
| Rated Torque Nm | 100 | |
| Max Torque Nm | 300 | |
| Max Speed rev/min | 5210 | |
| Bush for F flange | 1210 | |
| Max Bore d1/d2 (mm) | 32 | |
| D (mm) | 95 | |
| L1 (mm) | 26.5 | |
| A (mm) | 76 | |
| Weight Part 1 (kg) | 1.3 | |
| Weight | 1.3 kg | |
| Dimensions | 9.5 × 2.65 × 2.65 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |

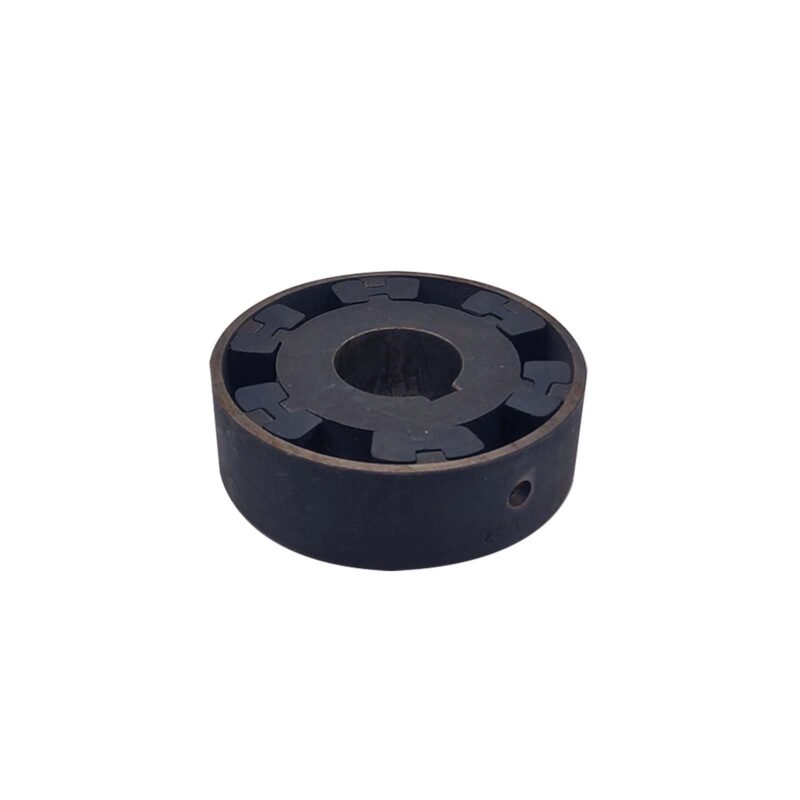

NPX 095T Part 1 Taper Bore Hub (1210)
The NPX 095T Part 1 Taper Bore Hub delivers durable, reliable torque transfer capabilities across light-to-medium industrial power transmission systems. Engineered to take a standard 1210 taper lock bush, this hub guarantees a balanced, high-concentricity lock directly onto the shaft. Its robust jaw profiles fit securely against the coupling’s elastomeric ring, dampening peak torsional impulses and shielding high-value driven elements from damaging dynamic stress.
Key Features
- 1210 Taper Bore Geometry: Utilizes standard taper lock sizing for quick alignment adjustments and wide-ranging shaft diameter coverage.
- Part 1 Layout configuration: Optimally balanced to minimize runout and ensure steady rotational performance.
- Downtime Optimization: Swift taper engagement allows field technicians to swap or adjust components in minutes.
- High Wear Endurance: Crafted from structural-grade metal casting to resist structural fatigue under continuous loading cycles.
Technical Specifications & Dimensions
