In Stock
Add to Basket
SKU: NPX-110-4T
NPX Taper Bored
NPX 110T Part 4 Taper Bore Hub (1615)
£165.17
ex. VAT · £198.20 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Power at 100 rev/min kW
1.68
Rated Torque Nm
160
Max Torque Nm
480
Max Speed rev/min
5010
Bush for F flange
1615
Max Bore d1/d2 (mm)
42
D (mm)
110
L2 (mm)
38.5
C (mm)
20.5
Weight Part 4 (kg)
2.25
Weight
2.25kg
Dimensions (L × W × H)
11 × 11 × 3.85 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | NPX-110-4T | Aroflex part number |
| Power at 100 rev/min kW | 1.68 | |
| Rated Torque Nm | 160 | |
| Max Torque Nm | 480 | |
| Max Speed rev/min | 5010 | |
| Bush for F flange | 1615 | |
| Max Bore d1/d2 (mm) | 42 | |
| D (mm) | 110 | |
| L2 (mm) | 38.5 | |
| C (mm) | 20.5 | |
| Weight Part 4 (kg) | 2.25 | |
| Weight | 2.25 kg | |
| Dimensions | 11 × 11 × 3.85 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |

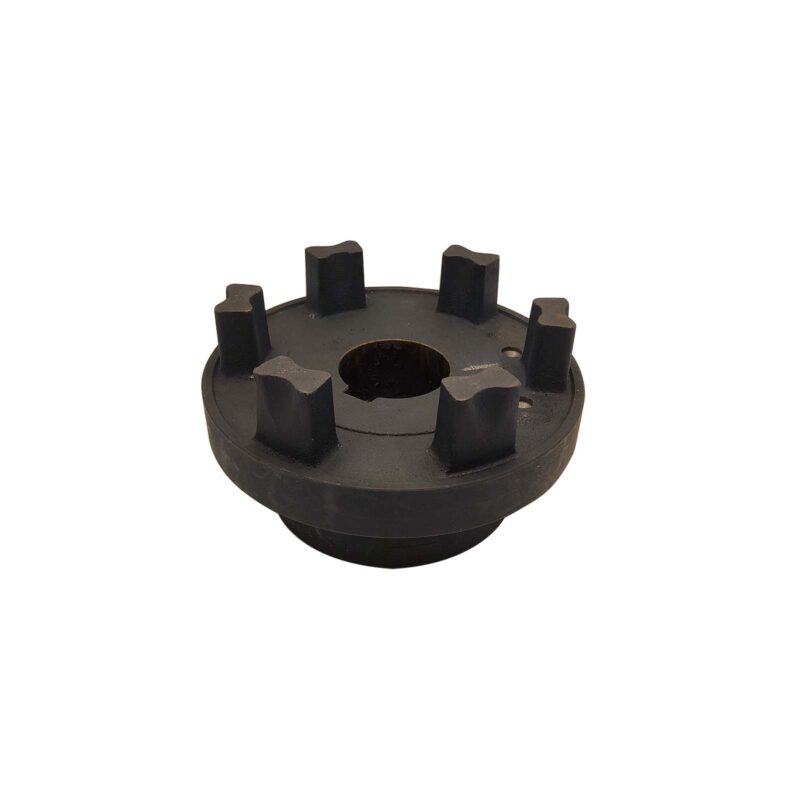

NPX 110T Part 4 Taper Bore Hub (1615)
The NPX 110T Part 4 Taper Bore Hub serves as the companion mating face for the 110T coupling system. Sized for a standard 1615 taper lock bush, it provides an uncompromising, friction-locked clamp that resists axial movement on the shaft. The hub’s cast jaws interlock securely with the elastomer ring, ensuring continuous, fail-safe power transmission even if sudden load fluctuations occur.
Key Features
- 1615 Bush Accommodation: Delivers exceptional gripping capacity to completely eliminate slippage concerns on driven machinery.
- Part 4 Mating Geometry: Accurately aligned to interface perfectly with Part 1 assemblies.
- Vibration Control: Curbs residual system resonances, protecting delicate sensors and electric motors.
- Tough External Defense: Built to endure harsh, demanding environments, including chemical exposure and dust.
Technical Specifications & Dimensions
