SKU: NPX-125-TB-P1nP4
Complete NUPEX NPX Type B Pilot Bore Couplings
NPX-125 Type B (Part 1 and Part 4)
£96.09
ex. VAT · £115.31 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Power at 100 rev/min kW
2.51
Rated Torque Nm
240
Max Torque Nm
720
Max Speed rev/min
5000
Max Bore d2 (mm)
55
D (mm)
126
L1 (mm)
50
L2 (mm)
50
A (mm)
13
Weight Part 1 (kg)
3.55
Weight
6.65kg
Dimensions (L × W × H)
12.6 × 12.6 × 10 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | NPX-125-TB-P1nP4 | Aroflex part number |
| Power at 100 rev/min kW | 2.51 | |
| Rated Torque Nm | 240 | |
| Max Torque Nm | 720 | |
| Max Speed rev/min | 5000 | |
| Max Bore d2 (mm) | 55 | |
| D (mm) | 126 | |
| L1 (mm) | 50 | |
| L2 (mm) | 50 | |
| A (mm) | 13 | |
| Weight Part 1 (kg) | 3.55 | |
| Weight | 6.65 kg | |
| Dimensions | 12.6 × 12.6 × 10 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
NPX-125 Type B Flexible Coupling (Part 1 and Part 4)
The NPX-125 Type B is a high-performance, flexible shaft coupling designed to deliver reliable power transmission while compensating for structural shaft misalignments. Consisting of Part 1 and Part 4 configurations, this Type B coupling features precision-machined components designed to minimize torsional vibrations, dampen operational shock loads, and maximize the operational lifespan of your drivetrain assemblies.
Key Features
- Torsional Flexibility: Optimizes dampening characteristics to safeguard electric motors and connected gearboxes from sudden load spikes.
- Misalignment Compensation: Effectively absorbs parallel, angular, and axial misalignments during continuous service.
- Fail-Safe Assembly: Interlocking jaw layout keeps the drivetrain safe and structurally operational even under peak overload conditions.
- Type B Configuration: Supplied with Part 1 and Part 4 specifications tailored for standard industrial mounting setups.

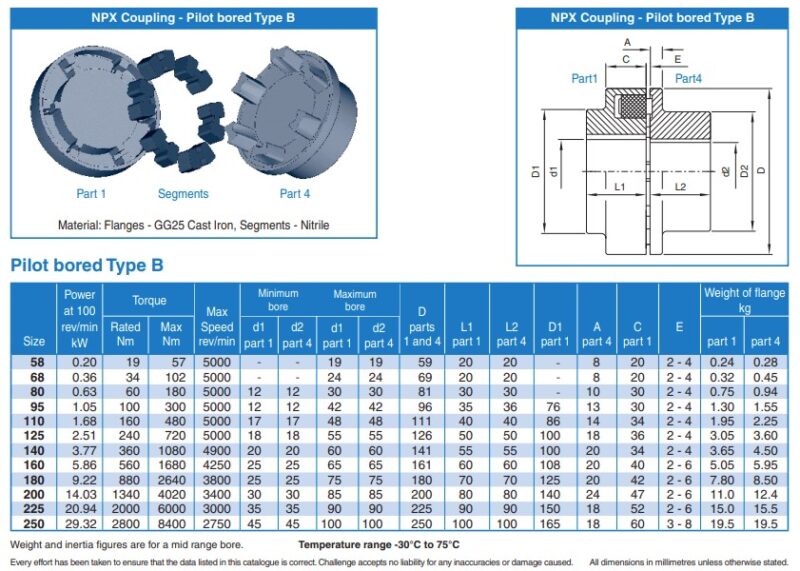

Technical Specifications & Dimensions
