In Stock
Add to Basket
SKU: RB105.COMPLETE
Complete Pin & Bush (RB) Couplings
RB105 Complete Coupling
£64.80
ex. VAT · £77.76 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Rated Torque (Nm)
95
kW Rating at 100rpm
1
Maximum Speed rpm
7200
Minimum Bore (mm)
11
Max. Bore ød1 (mm)
30
Max. Bore ød2 (mm)
32
ø A (mm)
105
ø D1 (mm)
48
ø D2 (mm)
50
E (mm)
45
C (mm)
2-6
Moment of Inertia kg.m²
0.003
Max. Misalignment Angular
1
Max. Misalignment parallel
0.3
Max. Misalignment Axial
2
No. of holes
3
Weight
0.03kg
Dimensions (L × W × H)
9 × 10.5 × 10.5 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | RB105.COMPLETE | Aroflex part number |
| Rated Torque (Nm) | 95 | |
| kW Rating at 100rpm | 1 | |
| Maximum Speed rpm | 7200 | |
| Minimum Bore (mm) | 11 | |
| Max. Bore ød1 (mm) | 30 | |
| Max. Bore ød2 (mm) | 32 | |
| ø A (mm) | 105 | |
| ø D1 (mm) | 48 | |
| ø D2 (mm) | 50 | |
| E (mm) | 45 | |
| C (mm) | 2-6 | |
| Moment of Inertia kg.m² | 0.003 | |
| Max. Misalignment Angular | 1 | |
| Max. Misalignment parallel | 0.3 | |
| Max. Misalignment Axial | 2 | |
| No. of holes | 3 | |
| Weight | 0.03 kg | |
| Dimensions | 9 × 10.5 × 10.5 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Certification | ISO 9001:2015 | Quality assured |

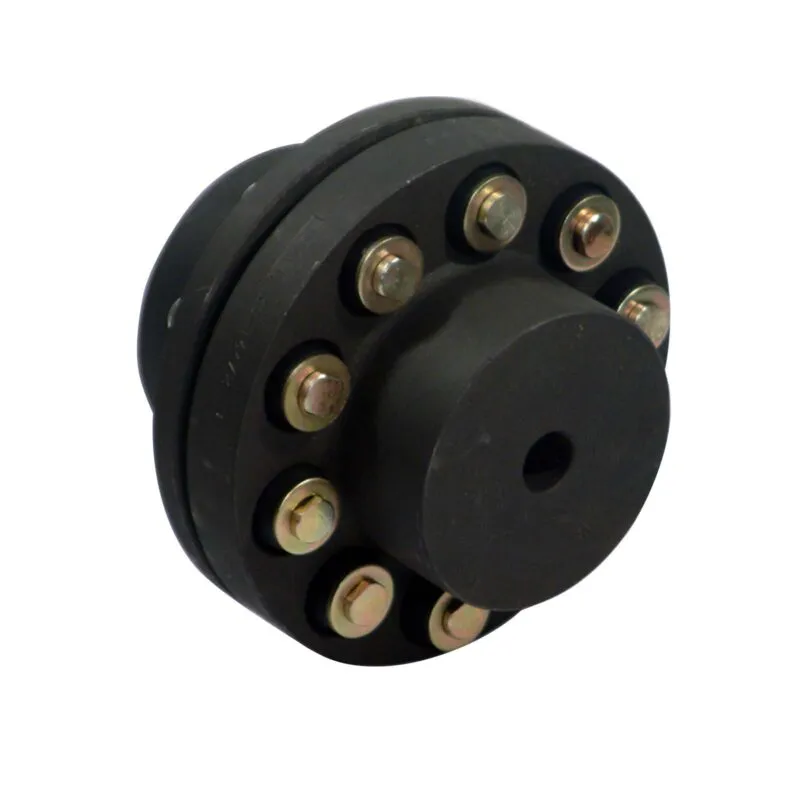

RB105 Complete Pin & Bush Flexible Coupling
The RB105 Complete Coupling is a high-capacity, heavy-duty flexible pin and bush coupling engineered to absorb high shock loads, accommodate structural misalignments, and dampen severe torsional vibrations. To fit your machinery seamlessly, please view our In-House Machining Services for precision custom boring and keying options.
Key Features & Advantages
- High Shock & Vibration Absorption: Resilient elastomeric bushes absorb severe impacts, making it ideal for rotating machinery under fluctuating loads.
- Fail-Safe Operational Continuity: Even in the unlikely event of unexpected bush wear, the high-tensile steel pins safely maintain driven connectivity to prevent sudden system dropouts.
- Simplified Maintenances: Designed for easy pin and barrel-bush replacement without necessitating complete hub disassembly or equipment realignment.
- Bi-directional Operation: Smooth power delivery across both forward and reverse rotations.
Technical Layout & Dimensional Diagram
