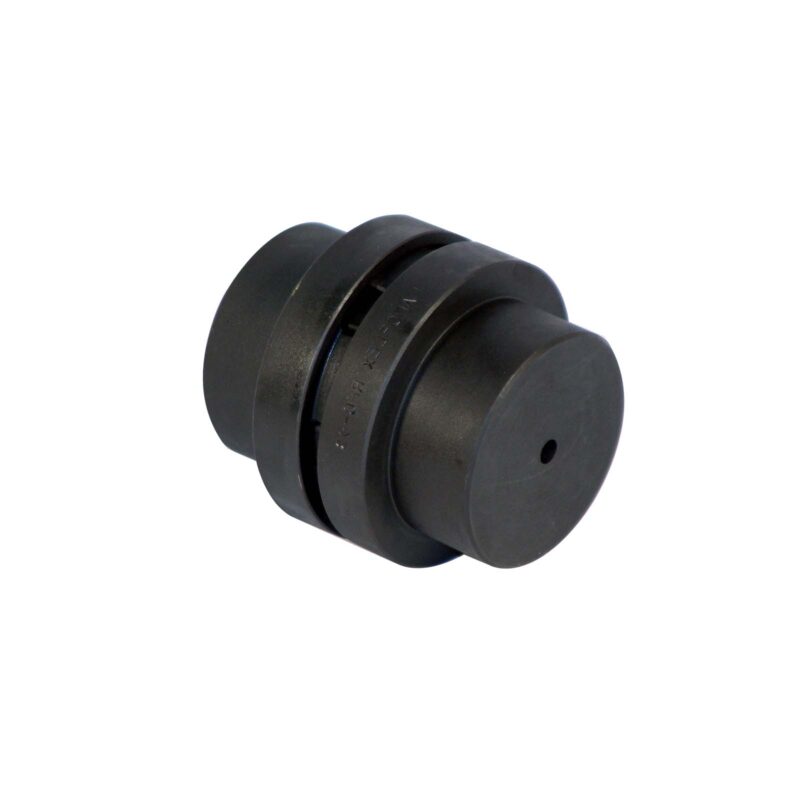

RFC90 Complete Coupling

£20.16 (£16.80 ex. VAT)

SKU: RFC090.COMPLETE Category:

RFC90 Complete Coupling These semi-elastic flexible couplings are designed for general purpose use and permit quick and easy assembly by means of Taper Lock bush fixing. Their characteristics are designed for use on particularly on machinery driven from standard IEC electric motors. Fully machined outside diameters allow alignment by simple straight edge methods. Shaft connection is *fail safe* due to interacting dog design. The semi-elastic general purpose HRC coupling is ideal for use with electric motors.

Hubs are available in either F, H, P.B. or F.B. F = Taper bore, tapering from the inside, H = Taper bore, tapering from the outside.

Also refer to our to In-house engineering for your boring and keying needs. Note: Power ratings are based on Service Factor 1.

In order for us to process your order, please state which flanges you require (i.e. F/F, F/H, H/H style or pilot bore).

Weight 2.34 kg
Dimensions 8.5 × 8.5 × 8.5 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Axial Misalignment

+0.49

Max Rotation Speed

7400 RPM

Parallel Misalignment

0.3

Torque Rating Max

180Nm

Torque Rating Min

80Nm

Min Bore

10mm

Max Bore

42mm
