In Stock
Add to Basket
SKU: R24-1
Fluid Seals

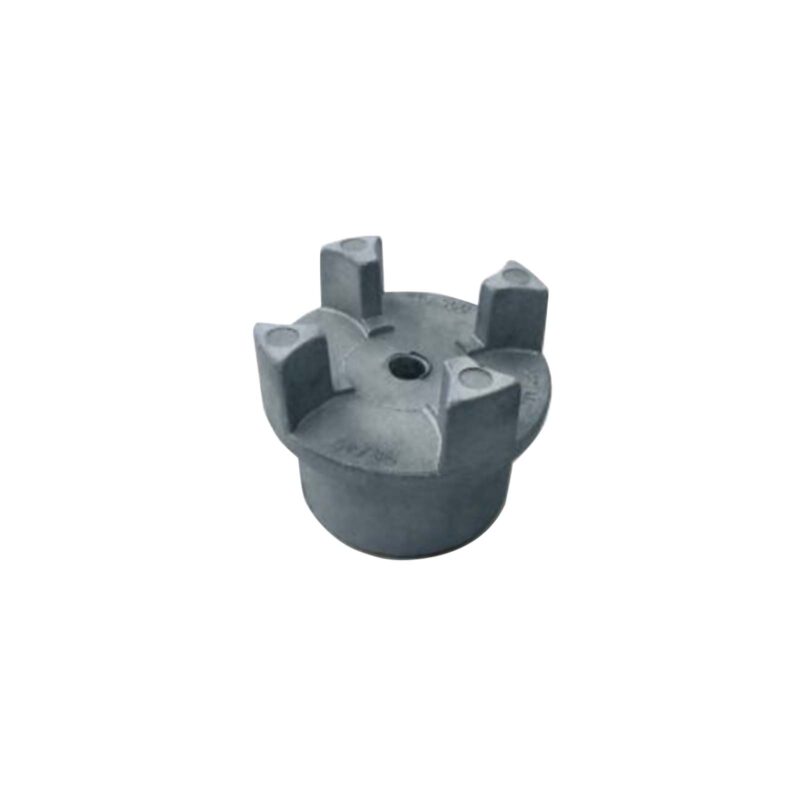

AROFLEX 24-1 Pilot Bore Hub AL (9mm Bore 24mm Max Bore)
Original price was: £21.54.£16.16Current price is: £16.16.
ex. VAT · £19.39 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Weight
0.38kg
Dimensions (L × W × H)
5.6 × 5.6 × 7.7 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | R24-1 | Aroflex part number |
| Weight | 0.38 kg | |
| Dimensions | 5.6 × 5.6 × 7.7 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
AROFLEX 24-1 Pilot Bore Hub AL (9mm Bore 24mm Max Bore) Designed to industry standard. Available with three part flanges, thus allowing the segments to be changed without disturbing either the driving or driven shaft. High levels of torsional flexibility. High speed capability. Suit IEC electric motor applications. Refer to our RTX selection chart for extra infomartion.
- Full machined with curved jaw design. This reduces vibration and allows for increased shock loading
- Designed to industry standard
- High torque for size
- 92 shore (yellow) and 98 shore (red) elements available
🚚 Free UK delivery over £150
🔒 SSL secure checkout
🌍 Global shipping available
