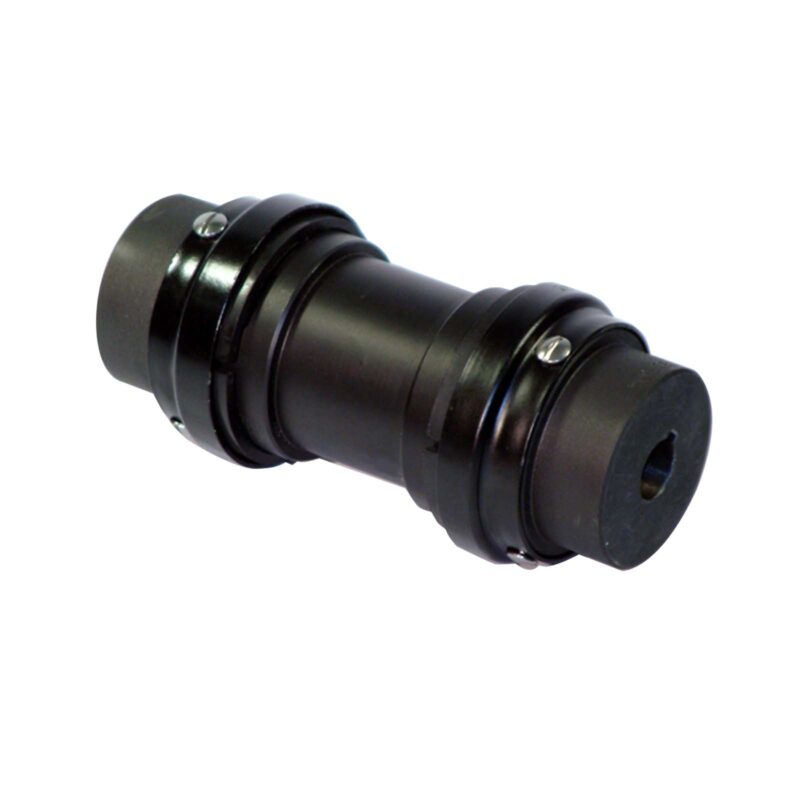

RRS95 100mm DBSE Complete Spacer Coupling
£107.00
| Parameter | Value | Notes |
|---|---|---|
| SKU | RRS095-100.COMPLETE | Aroflex part number |
| Coupling Size | RRS 95 | |
| DBSE | 100 mm | |
| Rated Torque | 21.1 Nm | |
| Max Bore | 28 mm | |
| Hub Length | 25 mm | |
| Total Assembled Length | 150 mm | |
| Coupling Type | Spacer Coupling | |
| Weight | 0.96 kg | |
| Dimensions | 10 × 10 × 10 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
RRS95 100mm DBSE Complete Spacer Coupling
- Replacement/Inspection of elastomeric member (i.e. Snapwrap) done without disturbing existing alignment.
- Less down time & easy for replacement of Snapwrap.
- Couplings can be supplied with Taper Bushes.
- The RRS Complete Spacer Coupling provides 100 mm DBSE (Distance Between Shaft Ends) for easy maintenance access.
- Ideal for back pull-out pump installations — allows impeller and seal removal without moving the motor.
Construction Details
1) Hub, 4) SW Ring, 5) Cheese Head Screw, 13) Spacer, 17) Snapwrap
Technical Specifications
| Coupling Size | RRS 95 |
| DBSE | 100 mm |
| Rated Torque | 21.1 Nm |
| Max. Bore | 28 mm |
| Hub Length | 25 mm |
| Total Assembled Length | 150 mm (Hub × 2 + DBSE) |
| Flexible Element | Snapwrap (NBR) — upgrades to PU available for higher torque |
Assembly Procedure for RRS Couplings
After ensuring that the equipment is aligned properly, take the spacer jaw body assembly with the inside & outside rings without elastomeric elements. Insert the spacer assembly into the adapters and tighten bolts to the recommended torque. Wrap the snap wrap(s) of the required size in the space between jaws, then slide the outer ring over the snap wrap(s) and fix it to the hub with screws/bolts and washers.
Please also see our In-House Machining Services for your boring/keying needs, alternatively please click here to send us an email enquiry. Note: Power ratings are based on Service Factor 1.
