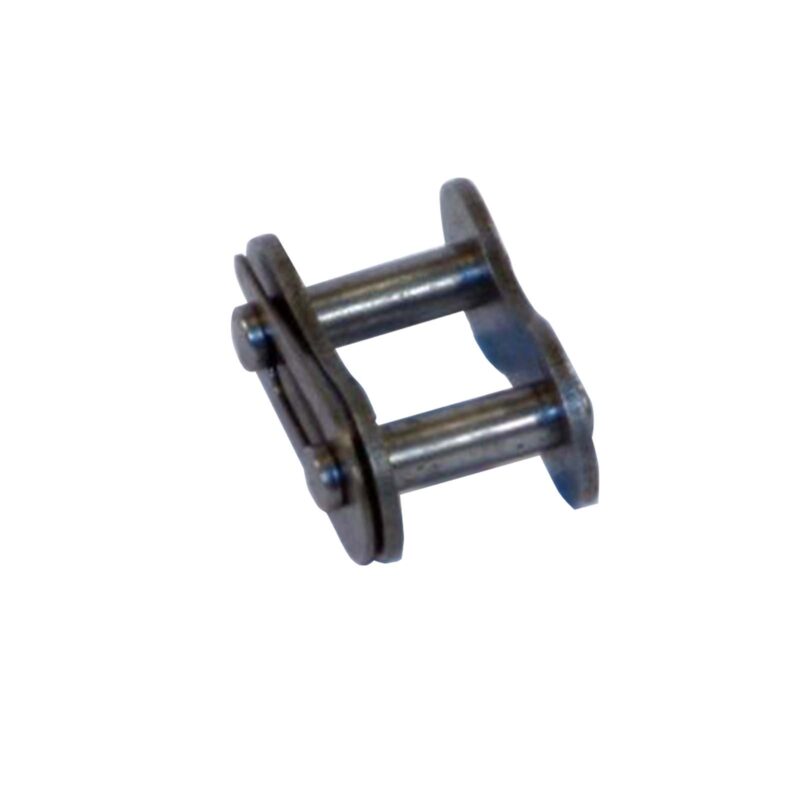

S55 Single Crank Link For Agricultural Chain
S55 Single Crank Link For Agricultural Chain manufactured to ISO 487 / DIN 8189 standards for heavy-duty farm machinery, balers, elevators, and combine harvesters. High tensile strength, precision heat-treated steel.
£4.04
| Parameter | Value | Notes |
|---|---|---|
| SKU | S55.SCRANK | Aroflex part number |
| Product Type | Single Crank Link (Offset Link) | |
| Chain Series | S55 | |
| Manufacturing Standard | ISO 487 / DIN 8189 | |
| Pitch (P) | 41.40 mm (1.630 in) | |
| Inner Width (b1) | 22.23 mm (0.875 in) | |
| Roller / Barrel Diameter (d1) | 17.78 mm (0.700 in) | |
| Pin Diameter (d2) | 5.72 mm (0.225 in) | |
| Plate Height (h2) | 17.30 mm (0.681 in) | |
| Plate Thickness (T) | 2.80 mm (0.110 in) | |
| Min. Ultimate Tensile Strength | 33.0 kN (7, 418 lbf) | |
| Material | High-Grade Heat-Treated Carbon Steel | |
| Unit / Package Type | Each | |
| Weight | 0.5 kg | |
| Certification | ISO 9001:2015 | Quality assured |
The S55 Single Crank Link (also known as an offset link or half-link) allows length adjustment of S55 Agricultural Chains by adding or subtracting an odd number of pitches (1 pitch = 41.40 mm (1.630 in)). Crucial for achieving precise chain tension on fixed-center agricultural drives and conveyors.
Key Specifications & Benefits
- Accurate Chain Tensioning: Enables single-pitch adjustments to compensate for fixed center-distance sprockets and chain wear.
- Heavy-Duty Contoured Side Plates: Formed from high-tensile alloy steel to distribute torsional loading evenly across the offset geometry.
- Exact OEM Compatibility: Perfectly matches S55 chain dimensions (41.40 mm (1.630 in) pitch, 17.78 mm (0.700 in) roller diameter, 22.23 mm (0.875 in) inner width).
- Case-Hardened Pin: Comes complete with heavy-duty pin and cotter/fastener designed for severe shock loads.
Operating Recommendation
Recommended for use in agricultural drives requiring intermediate chain tensioning where idler sprockets or movable take-up frames cannot be fitted.
