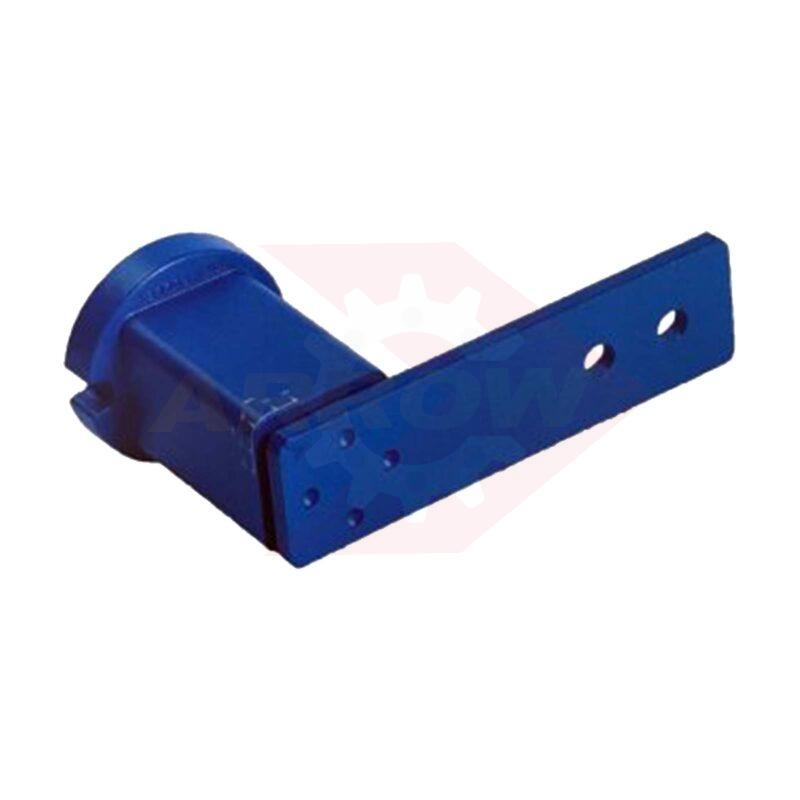

SE45 Tensioner Arm
£245.30
| Parameter | Value | Notes |
|---|---|---|
| SKU | SE45 Tensioner Arm | Aroflex part number |
| Product Type | Automatic Tensioner Element | |
| Component Series | ROSTA SE Tensioner Arm | |
| Model Size | SE 45 | |
| Mounting Screw | M24 Central Bolt | |
| Pretension Angle | ±30° Maximum Working Deflection | |
| Tensioning Force | 200 N (720 lbf), Up to 3 | |
| Arm Length | 225 mm center-to-center | |
| Chain / Belt Pitch | Suits 1.1/4" (20B) & 1.1/2" (24B) Chain | |
| Number of Teeth | N/A | |
| Roller Dimensions | N/A | |
| Bearing Spec | Maintenance-Free Rubber Suspension Core | |
| Material & Finish | Heavy Steel Arm, Spheroidal Cast Iron Housing | |
| Compatible Units | N1.1/4"-20S & N1.1/2"-20S Sprockets, R45 Roller | |
| Operating Temp | -40°C to +80°C (-40°F to +176°F) | |
| Weight | 0.1 kg | |
| Certification | ISO 9001:2015 | Quality assured |
The ROSTA SE 45 Standard Tensioner Arm is a world-renowned, maintenance-free elastomeric rubber suspension device engineered for automatic tensioning of industrial chain drives and belt systems. Featuring an integrated multi-directional rubber insert suspension, the SE 45 automatically compensates for drive elongation, dampens cyclic vibrations, and prevents slack-side whip and shock-loading across machinery drives.
Key Engineering Specifications & Performance Advantages
- Automatic Self-Tensioning: Continuously adjusts to chain or belt stretch, preventing slack vibration, tooth skip, and premature fatigue.
- Tensioning Capacity: Delivers a pretension force of Up to 3,200 N (720 lbf) over a maximum working angle of ±30° Maximum Working Deflection.
- Maintenance-Free Rubber Core: Four pre-stressed natural rubber inserts provide continuous elastomeric damping without springs, hydraulic fluid, or routine relubrication.
- Heavy-Duty Housing: Constructed from Spheroidal Cast Iron Housing, Heavy Steel Arm with an arm center length of 225 mm center-to-center.
- Single-Bolt Mounting: Secure M24 Central Bolt central mounting enables 360° rotational positioning around the pivot axis.
- Versatile Drive Integration: Fully compatible with R45 Roller, N1.1/4″-20S & N1.1/2″-20S Sprockets.
Typical Industrial Applications
Ideal for agricultural harvesting machinery, manufacturing assembly lines, timber processing conveyors, packaging machines, industrial fans, crushers, and pump drives.
