SKU: SW095.COMPLETE
SW Complete Snap Wrap Jaw Couplings
SW95 Complete Coupling
£30.20
ex. VAT · £36.24 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Nominal Torque Nm
25.8
Maximum Speed rev/min
9000

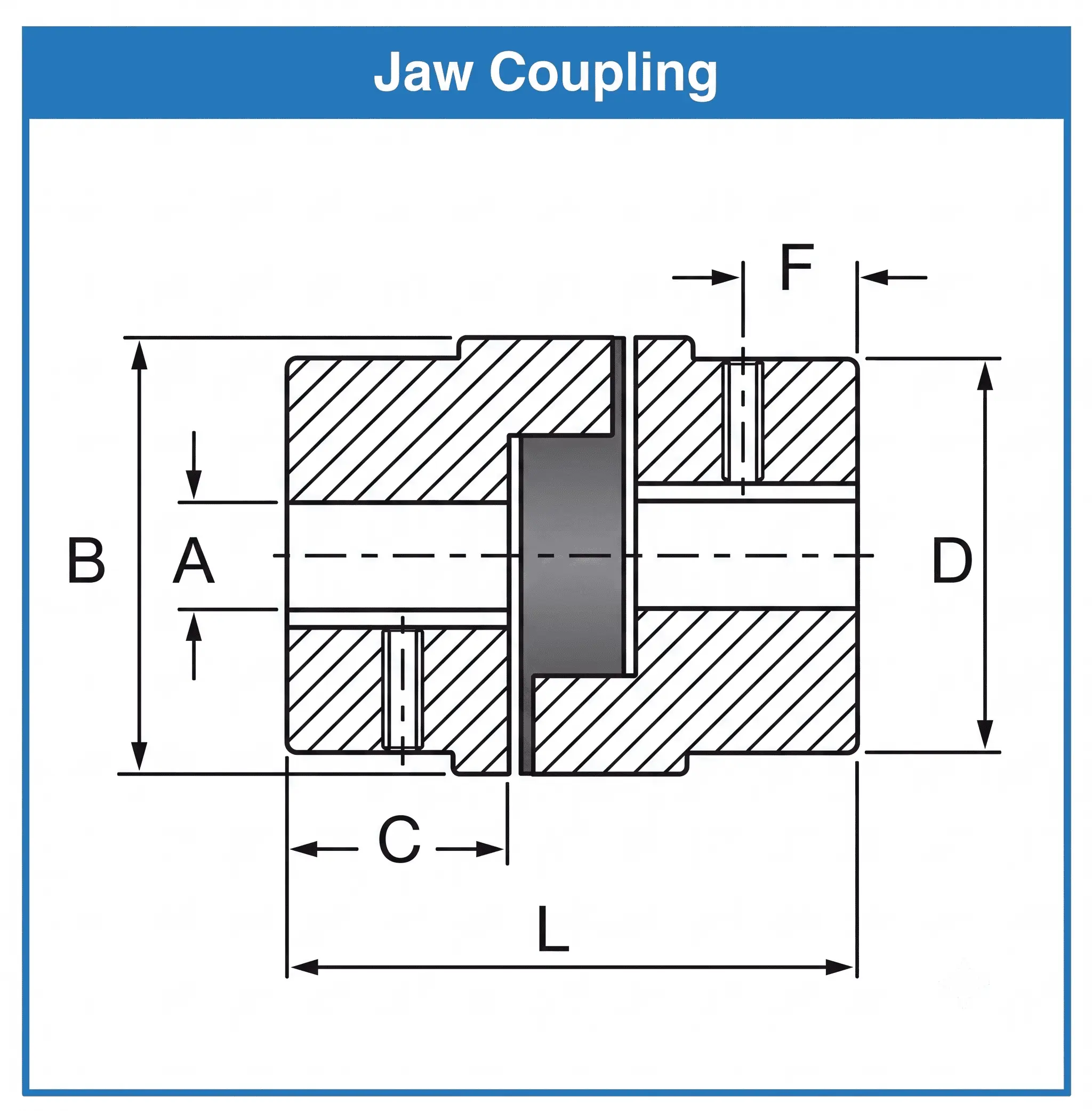

Pilot Bore A (mm)
9
Maximum Bore A (mm)
28
Overall Diameter B (mm)
54
Assembled Length L (mm)
64
Hub Width C (mm)
25
Hub Diameter D (mm)
54
Set Screw Size
M6
Complete Weight kg
0.65
Weight
0.95kg
Dimensions (L × W × H)
5.4 × 5.4 × 6.3 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | SW095.COMPLETE | Aroflex part number |
| Nominal Torque Nm | 25.8 | |
| Maximum Speed rev/min | 9000 | |
| Pilot Bore A (mm) | 9 | |
| Maximum Bore A (mm) | 28 | |
| Overall Diameter B (mm) | 54 | |
| Assembled Length L (mm) | 64 | |
| Hub Width C (mm) | 25 | |
| Hub Diameter D (mm) | 54 | |
| Set Screw Size | M6 | |
| Complete Weight kg | 0.65 | |
| Weight | 0.95 kg | |
| Dimensions | 5.4 × 5.4 × 6.3 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
SW95 Complete Non-Spacer Coupling
The SW95 Complete Non-Spacer Coupling features a highly efficient three-piece jaw construction optimized for rapid maintenance cycles. Built with a unique design where every second spider arm acts as an idler, these backup arms can be advanced to load carrier positions—giving you a built-in spare element right inside every assembly. Spiders are available in varied materials and shore hardness ratings to match precise system demands.
Snapwrap Advantages & Features
- Zero-Disturbance Inspection: Inspection or direct replacement of the elastomeric member (Snapwrap) is managed completely without moving hubs or disturbing existing shaft alignment.
- Minimized Plant Downtime: Wrap-around element features an incredibly simple removal process, cutting service time down to minutes.
- Taper Bush Integration: Can be fully configured and supplied with high-precision Taper Bushes for quick, clean mechanical locking.
- Internal Backup Element: Idler jaw design functions seamlessly as an immediate, on-site spare spider.
Technical Specifications & Dimensions
Note: Power ratings are strictly compiled based on a baseline Service Factor of 1.
