In Stock
Add to Basket
SKU: T140H
Tyre Couplings Hubs / Flanges

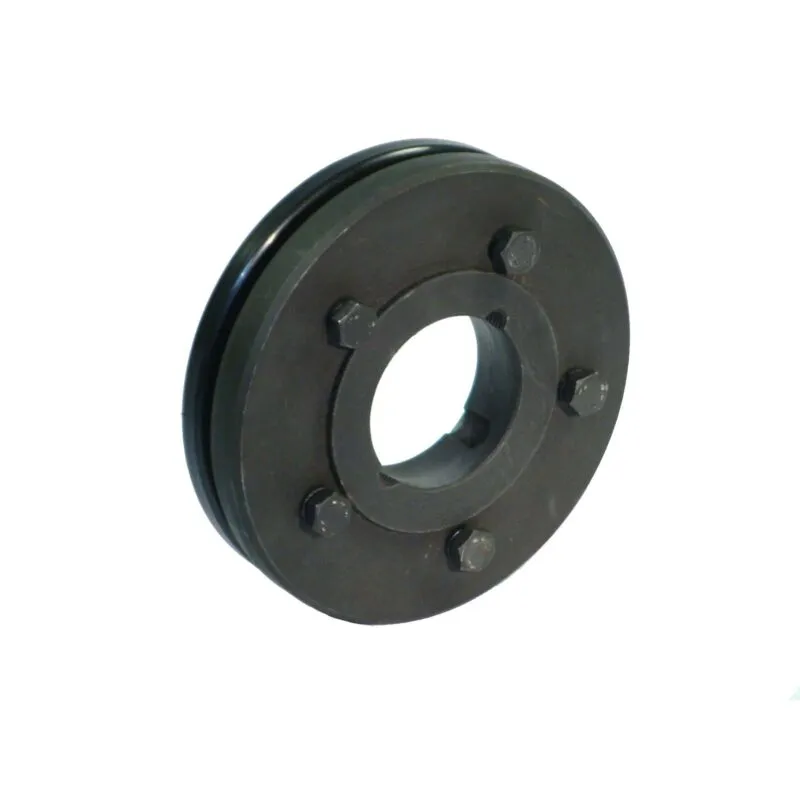

T.140H Tyre Coupling Hub (3525)
£242.67
ex. VAT · £291.20 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Maximum Bore Capacity
100 mm
Outer Flange Diameter (A)
359 mm
Shoulder/Hub Boss Diameter (B)
178 mm
Weight
22.3 kg
Moment of Inertia
0.255 kgm²
Nominal Torque
2325 Nm
Maximum Speed
1800 RPM
Max Angular Misalignment
Up to 3°
Max Parallel (Radial) Misalignment
3.7 mm
Max Axial Misalignment (End Float)
4.6 mm
Flange Face Spacing
33 mm
Tyre Gap
6 mm
Hardware Tightening
55 Nm
Weight
22.3kg
Dimensions (L × W × H)
35.9 × 35.9 × 35.9 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | T140H | Aroflex part number |
| Maximum Bore Capacity | 100 mm | |
| Outer Flange Diameter (A) | 359 mm | |
| Shoulder/Hub Boss Diameter (B) | 178 mm | |
| Weight | 22.3 kg | |
| Moment of Inertia | 0.255 kgm² | |
| Nominal Torque | 2325 Nm | |
| Maximum Speed | 1800 RPM | |
| Max Angular Misalignment | Up to 3° | |
| Max Parallel (Radial) Misalignment | 3.7 mm | |
| Max Axial Misalignment (End Float) | 4.6 mm | |
| Flange Face Spacing | 33 mm | |
| Tyre Gap | 6 mm | |
| Hardware Tightening | 55 Nm | |
| Weight | 22.3 kg | |
| Dimensions | 35.9 × 35.9 × 35.9 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
T.140H Tyre Coupling Hub (3525 Taper Lock)
The T.140H Tyre Coupling Hub incorporates an external Type H (Hub) taper bore design engineered for standard 3525 Taper Lock Bushings. In this orientation, the taper bushing locks from the outer hub side, providing clear visibility and wrench access on extended shafts. It provides a secure, slip-free clamp that minimizes vibration across the flexible coupling center.
Product Features & Specifications
- Model Size: T.140 Frame System
- Bushing Series Requirement: Fits 3525 Taper Lock Bushings.
- Flange Configuration: Type H Hub-mount format.
- Order Information Note: To ensure accurate configuration, please state which flange styles you require (i.e. F/F, F/H, H/H style or pilot bore) during checkout.
