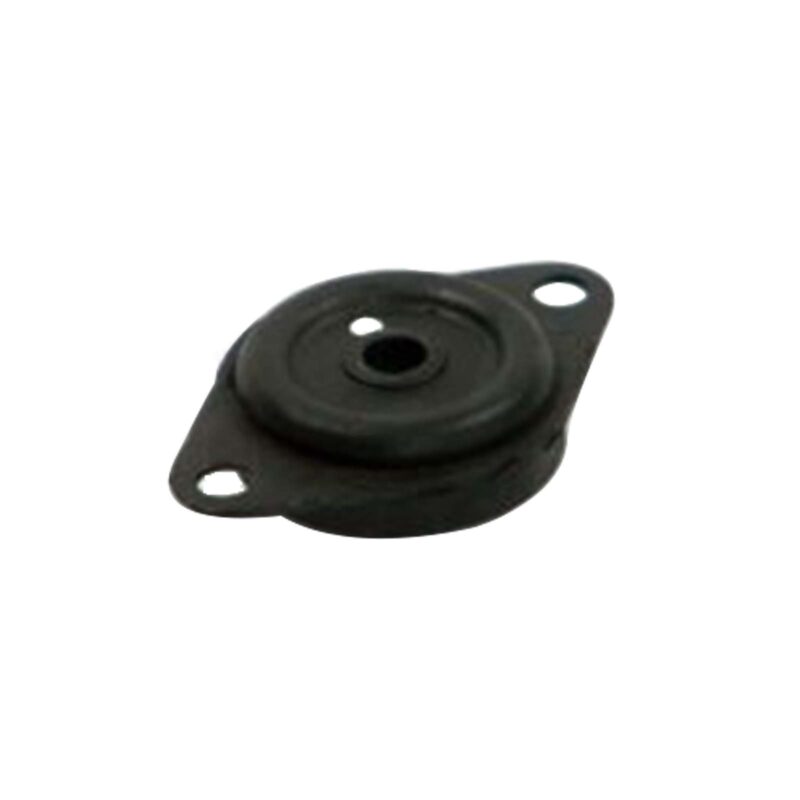

Core Mount 973-C

The Core Mount 973-C is a low-profile, fail-safe vibration isolator engineered for severe shock conditions. Designed with dual shear and compression action, this robust core mount delivers exceptional vibration isolation when used with snubbing washers. Its compact footprint and proven reliability make it ideal for applications requiring maximum durability with minimal space requirements.

Key Features:

• Dual Shear & Compression Design: Rubber works in both directions for superior shock absorption and vibration damping across multiple loading scenarios.
• 100kg Maximum Load Capacity: Engineered for light to medium-duty applications with reliable performance.
• Optimized Deflection (4.5mm max): Balanced static deflection provides effective vibration isolation and flexible load distribution.
• Fail-Safe Construction: Built-in mechanical stop ensures continued operation even under severe shock conditions.
• Low-Profile Design: Compact footprint ideal for space-constrained mounting locations and mobile applications.
• Snubbing Washers Required: Proper installation with washers ensures maximum load capacity and shock absorption performance.

Ideal applications include light-duty equipment isolation, mobile application mounting, shock-resistant machinery damping, and compact vibration isolation in demanding industrial environments.
