SKU: LM520MEMKIT
Membrane / Disc Packs
LM.520 Stainless Steel Membrane Kit
£125.10
ex. VAT · £150.12 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Rated Torque Nm
3343
Maximum Speed RPM
4200
Outer Diameter D (mm)
197
Hub Diameter H (mm)
132
Min Bore (mm)
32
Max Bore Type 2 Adapter (mm)
115
Max Angular Misalignment
0.5 deg
Disc Pack Bolt Size
M16
Weight (kg)
24.04
Torsional Stiffness (MNm/Radian)
2.775
Weight
0.01kg
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | LM520MEMKIT | Aroflex part number |
| Rated Torque Nm | 3343 | |
| Maximum Speed RPM | 4200 | |
| Outer Diameter D (mm) | 197 | |
| Hub Diameter H (mm) | 132 | |
| Min Bore (mm) | 32 | |
| Max Bore Type 2 Adapter (mm) | 115 | |
| Max Angular Misalignment | 0.5 deg | |
| Disc Pack Bolt Size | M16 | |
| Weight (kg) | 24.04 | |
| Torsional Stiffness (MNm/Radian) | 2.775 | |
| Weight | 0.01 kg | |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |

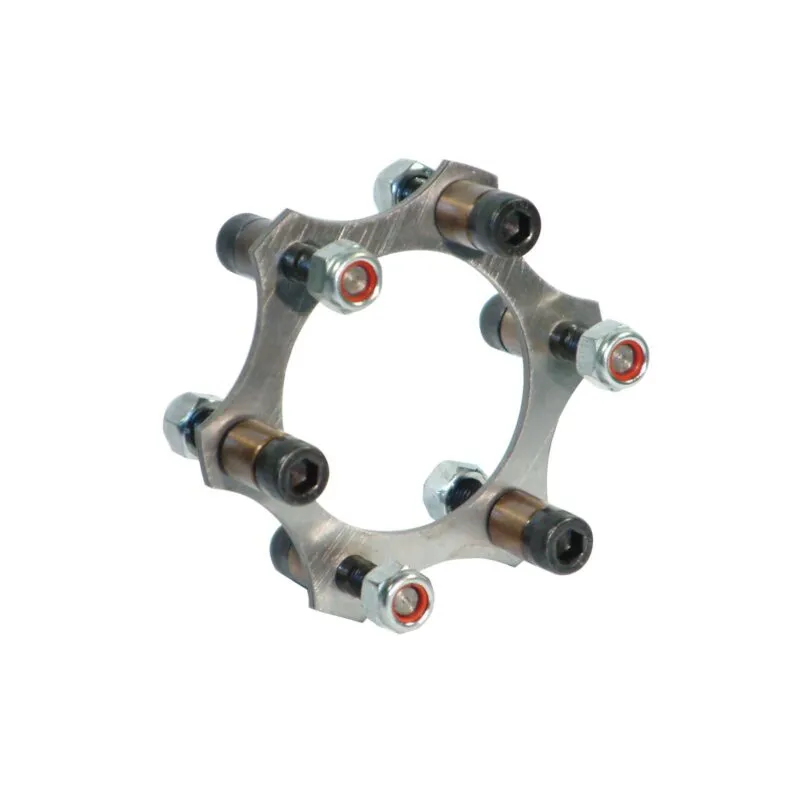

LM.520 Stainless Steel Membrane Kit
High-Performance Disc Pack Coupling Membrane Kit
The LM.520 Stainless Steel Membrane Kit is a heavy-duty disc pack designed for the most demanding industrial power transmission applications. The flexible discs (membranes) are manufactured from special stainless steel, half-hard cold-rolled, with a minimum ultimate tensile strength of 1034 N/mm² (AISI 304 grade). Bushes, sleeves and caps are made from EN-8 steel, with cap screws in High Tensile Grade 12.9 steel for secure, reliable assembly.
Key Benefits & Features
- High Tensile Strength Discs: AISI 304 grade stainless steel with minimum 1034 N/mm² ultimate tensile strength for very high torque transmission.
- High Power Capacity: Rated up to 4,200 RPM maximum speed at high torque levels.
- Misalignment Compensation: Accommodates angular, axial and parallel misalignment, protecting heavy machinery from damaging loads.
- Flexible Mounting Options: Suitable for both direct-coupled and spacer coupling configurations.
For custom bore and keyway machining, see our in-house engineering service.
