SKU: NPX-140-1T
NPX Taper Bored

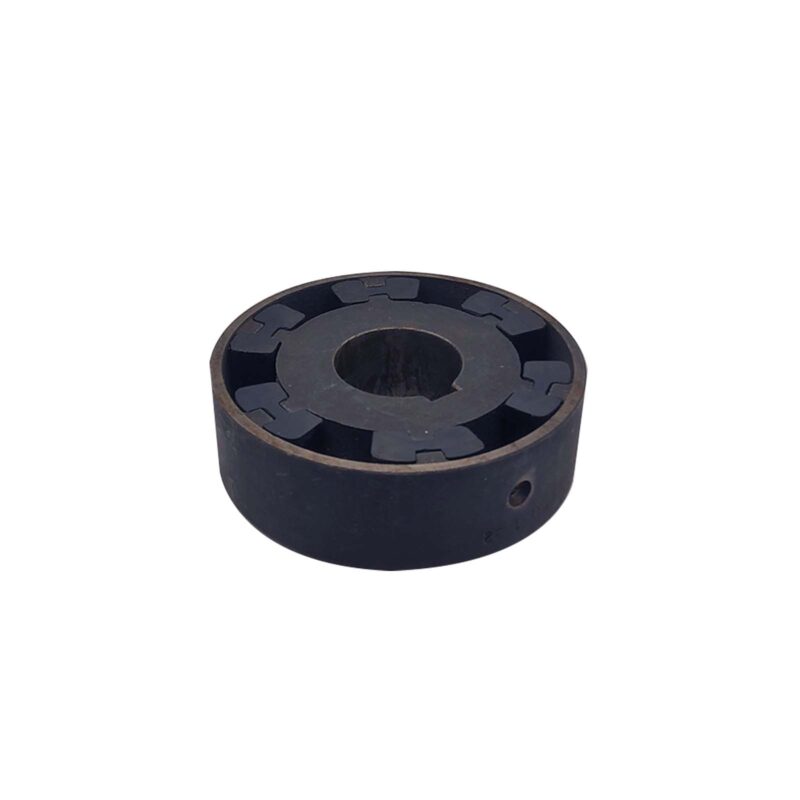

NPX 140T Part 1 Taper Bore Hub (2012)
£225.14
ex. VAT · £270.17 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Power at 100 rev/min kW
3.77
Rated Torque Nm
560
Max Torque Nm
1980
Max Speed rev/min
4250
Bush for F flange
2012
Max Bore d1/d2 (mm)
60
D (mm)
160
L1 (mm)
46
A (mm)
20
Weight Part 1 (kg)
5.05
Weight
0.1kg
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | NPX-140-1T | Aroflex part number |
| Power at 100 rev/min kW | 3.77 | |
| Rated Torque Nm | 560 | |
| Max Torque Nm | 1980 | |
| Max Speed rev/min | 4250 | |
| Bush for F flange | 2012 | |
| Max Bore d1/d2 (mm) | 60 | |
| D (mm) | 160 | |
| L1 (mm) | 46 | |
| A (mm) | 20 | |
| Weight Part 1 (kg) | 5.05 | |
| Weight | 0.1 kg | |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |
NPX 140T Part 1 Taper Bore Hub (2012)
The NPX 140T Part 1 Taper Bore Hub is engineered to meet the stringent power demands of large-scale mechanical operations. Optimized to take a standard 2012 taper lock bush, this hub creates a high-pressure clamp on the driving shaft, preventing rotational creep. Its reinforced jaw configuration matches seamlessly with the flexible element insert, providing fluid torque flow while safely absorbing misalignments.
Key Features
- 2012 Taper System Compatibility: Provides high clamping forces on critical drive shafts without specialized tools.
- Part 1 Primary Frame: Serves as the primary drive component within the fail-safe interlocking jaw array.
- Vibration Cancellation: Curbs high-frequency vibrations to limit stress on driven gear components and bearings.
- Industrial Strength: Built with premium materials to resist structural fatigue and micro-cracking over long lifecycles.
Technical Specifications & Dimensions
