In Stock

Add to Basket

SKU: PB-PC-100-C PC Combi Mounts

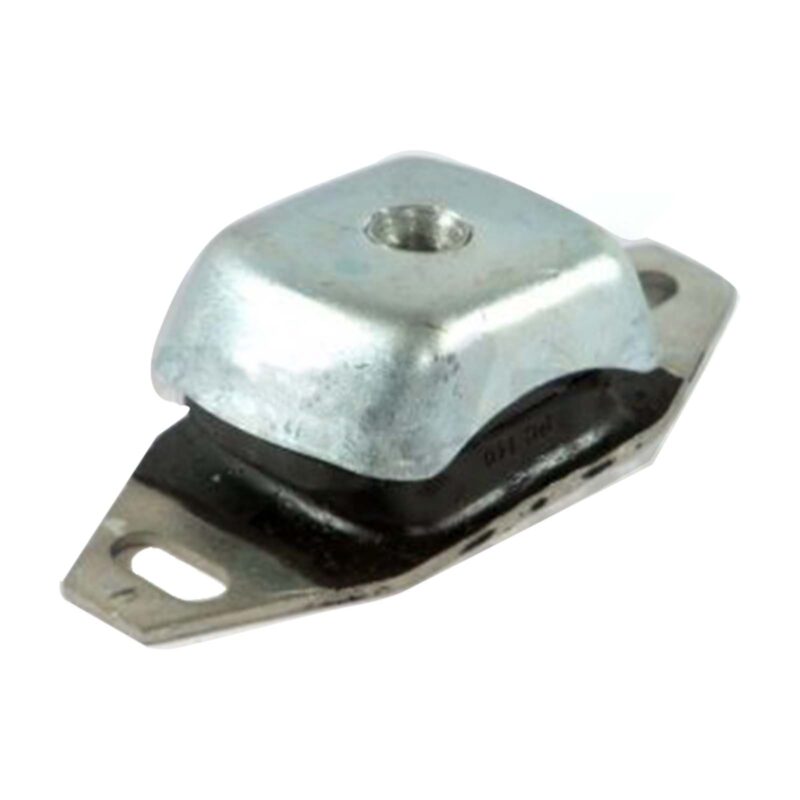

PC Combi Mount 100-C (M12)

Name: PC Combi Mount 100-C (M12) | UK Stock | Arrow Engineering
SKU: PB-PC-100-C
Price: 42.98 GBP
Availability: InStock

£42.98

ex. VAT · £51.58 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Thread Size

M12

Diameter A (mm)

100

Dimension B (mm)

~120

Dimension P/C (mm)

Dimension D/E (mm)

~50

Bolt Holes Centers (mm)

100

Overall Length (mm)

~120

Load Capacity (kg)

100

Static Deflection (mm)

4-5

Material Options

NR/NBR

Shore Hardness

45/55/65/75

Features

Fail-safe | Low profile

Weight

0.5kg

Dimensions (L × W × H)

11.7 × 6 × 3.8 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PB-PC-100-C	Aroflex part number
Thread Size	M12
Diameter A (mm)	100
Dimension B (mm)	~120
Dimension P/C (mm)	15
Dimension D/E (mm)	~50
Bolt Holes Centers (mm)	100
Overall Length (mm)	~120
Load Capacity (kg)	100
Static Deflection (mm)	4-5
Material Options	NR/NBR
Shore Hardness	45/55/65/75
Features	Fail-safe \| Low profile
Weight	0.5 kg
Dimensions	11.7 × 6 × 3.8 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

The PC Combi Mount 100-C is a mid-range compact vibration isolator rated for 100kg per mount. This reliable elastomer mount delivers effective vibration isolation and fail-safe protection for medium-duty industrial equipment. Its compact design and proven fail-safe construction make it an excellent choice for equipment requiring space-efficient mounting with consistent vibration damping performance.

Key Features:

100kg Capacity: Perfect for industrial equipment including fans, compressors, pumps, and auxiliary machinery mounting.
Optimized Deflection (4-5mm): Engineered for effective shock absorption and vibration damping across frequency ranges.
Fail-Safe Protection: Built-in mechanical stop ensures continued safety and load support if rubber degrades.
M12 Secure Thread: Heavy-duty fastening provides vibration-resistant installation on equipment bases.
Compact Size: 100mm diameter with low profile fits easily into confined mounting spaces.
Elastomer Flexibility: Natural rubber (NR) or nitrile (NBR) available with 45-75 Shore hardness for customized performance.

Best for industrial fan support, compressor isolation, pump mounting, motor damping, and machinery isolation in manufacturing environments.

Please Click Here to view our Mounts Information Reference, should you require further information.
