SKU: PB-PC-110-B PC Combi Mounts

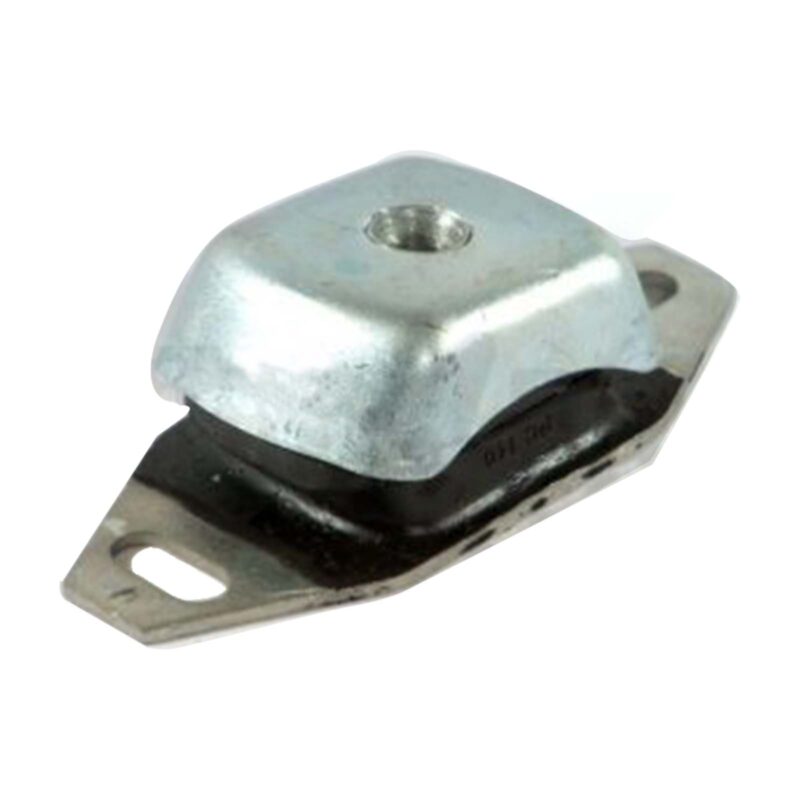

PC Combi Mount 110-B (M12)

Name: PC Combi Mount 110-B (M12) | UK Stock | Arrow Engineering
SKU: PB-PC-110-B
Price: 42.98 GBP
Availability: InStock

£42.98

ex. VAT · £51.58 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Thread Size

M10

Diameter A (mm)

110

Dimension B (mm)

~140

Dimension P/C (mm)

Dimension D/E (mm)

~60

Bolt Holes Centers (mm)

110

Overall Length (mm)

~140

Load Capacity (kg)

100

Static Deflection (mm)

3-4

Material Options

NR/NBR

Shore Hardness

45/55/65/75

Features

Fail-safe | Low profile

Weight

0.5kg

Dimensions (L × W × H)

11.7 × 6 × 3.8 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PB-PC-110-B	Aroflex part number
Thread Size	M10
Diameter A (mm)	110
Dimension B (mm)	~140
Dimension P/C (mm)	20
Dimension D/E (mm)	~60
Bolt Holes Centers (mm)	110
Overall Length (mm)	~140
Load Capacity (kg)	100
Static Deflection (mm)	3-4
Material Options	NR/NBR
Shore Hardness	45/55/65/75
Features	Fail-safe \| Low profile
Weight	0.5 kg
Dimensions	11.7 × 6 × 3.8 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

The PC Combi Mount 110-B is a compact industrial vibration isolator combining 100kg load capacity with space-efficient design. This medium-range mount features proven fail-safe construction and versatile mounting flexibility, making it ideal for industrial equipment requiring compact vibration isolation with proven reliability. Its smaller footprint makes it perfect for applications where space is limited without sacrificing performance.

Key Features:

100kg Load Rating: Ideal for mid-range compressors, industrial fans, pumps, and motor mounting applications.
Balanced Deflection (3-4mm): Effective vibration damping across typical industrial operating frequencies.
Fail-Safe Design: Mechanical stop ensures continued operation and load support if elastomer element degrades.
M10 Heavy-Duty Thread: Secure fastening provides vibration-resistant installation (Note: PC110 uses M10 fastening).
Compact Footprint: Smaller 110mm diameter with low profile suits space-constrained mounting locations.
Multiple Elastomer Options: Available in natural rubber (NR) or nitrile (NBR) with hardness grades 45, 55, 65, 75 Shore.

Ideal for industrial fan isolation, compressor mounting, pump support, motor damping, and general-purpose equipment suspension in confined spaces.

Please Click Here to view our Mounts Information Reference, should you require further information.
