SKU: PB-PC-140-A PC Combi Mounts

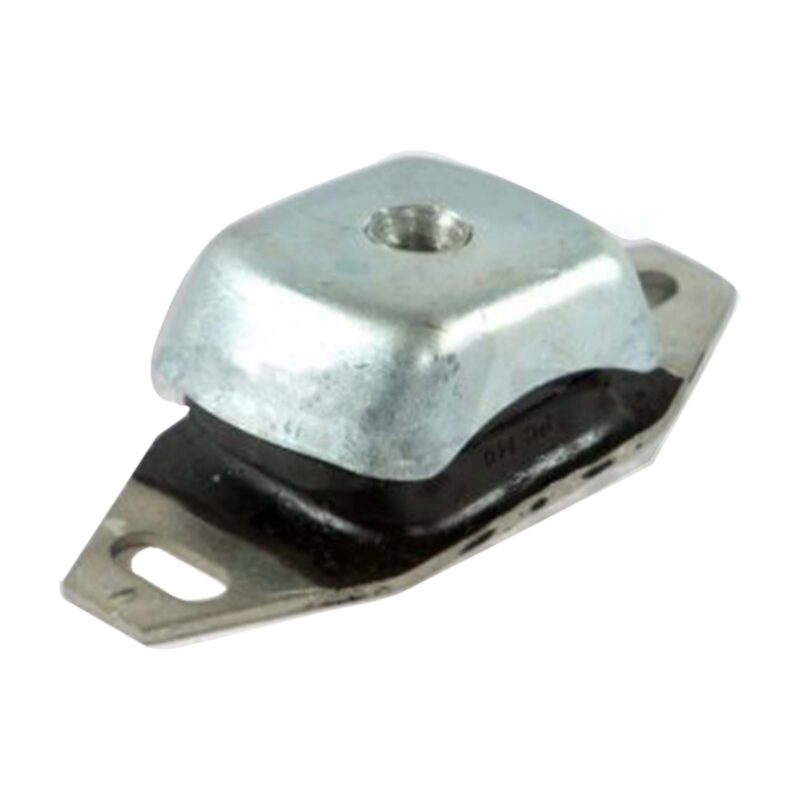

PC Combi Mount 140-A (M16)

Name: PC Combi Mount 140-A (M16) | UK Stock | Arrow Engineering
SKU: PB-PC-140-A
Price: 58.10 GBP
Availability: InStock

£58.10

ex. VAT · £69.72 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Thread Size

M16

Diameter A (mm)

140

Dimension B (mm)

178

Dimension P/C (mm)

Dimension D/E (mm)

Bolt Holes Centers (mm)

140

Overall Length (mm)

178

Load Capacity (kg)

135

Static Deflection (mm)

2-3

Material Options

NR/NBR

Shore Hardness

45/55/65/75

Features

Fail-safe | Low profile

Weight

0.1kg

Dimensions (L × W × H)

17.8 × 7.6 × 4.9 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PB-PC-140-A	Aroflex part number
Thread Size	M16
Diameter A (mm)	140
Dimension B (mm)	178
Dimension P/C (mm)	20
Dimension D/E (mm)	76
Bolt Holes Centers (mm)	140
Overall Length (mm)	178
Load Capacity (kg)	135
Static Deflection (mm)	2-3
Material Options	NR/NBR
Shore Hardness	45/55/65/75
Features	Fail-safe \| Low profile
Weight	0.1 kg
Dimensions	17.8 × 7.6 × 4.9 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

The PC Combi Mount 140-A is a light-duty vibration isolator designed for 135kg per mount capacity. With its proven fail-safe design and compact profile, this mount delivers effective vibration isolation for light to medium equipment requiring space-efficient mounting solutions. Its versatile capacity range and reliable performance make it suitable for diverse applications in industrial, marine, and automotive environments.

Key Features:

135kg Rated Capacity: Suitable for light industrial equipment, small pumps, auxiliary machinery, and control system isolation.
Quick Response Deflection (2-3mm): Responsive vibration damping for equipment operating across typical industrial frequency ranges.
Fail-Safe Assurance: Mechanical stop provides continued load support if rubber element wears or degrades.
M16 Secure Fastening: Heavy-duty thread for vibration-resistant mounting on industrial equipment bases and frames.
Compact Low-Profile Design: 140mm diameter fits easily into space-constrained installation areas.
Material Selection: Available in natural rubber (NR) or nitrile (NBR) with 45-75 Shore hardness options.

Ideal applications include small pump isolation, auxiliary equipment mounting, fan damping, motor support, and lightweight machinery isolation.

Please Click Here to view our Mounts Information Reference, should you require further information.
