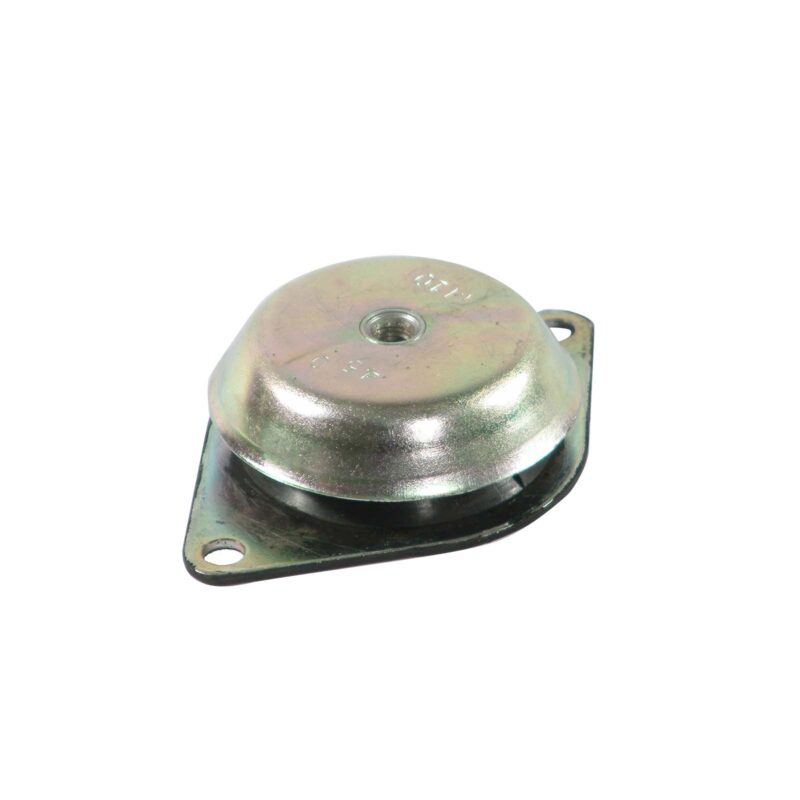

PCF 1063816-45 Combi Mount (M16)

Name: PCF 1063816-45 Combi Mount (M16) | UK Stock | Arrow Engineering
SKU: PCF1063816-45
Price: 33.11 GBP
Availability: InStock

£33.11

ex. VAT · £39.73 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Thread Size

M16

Diameter A (mm)

138

Dimension B (mm)

106

Dimension P/C (mm)

Dimension D/E (mm)

Bolt Holes Centers (mm)

106

Overall Length (mm)

172

Load Capacity (kg)

45kg load class

Static Deflection (mm)

Material Options

NR/NBR

Shore Hardness

45/55/65/75

Features

Compact | Elongated 14x18mm

Weight

0.45kg

Dimensions (L × W × H)

17.2 × 10.6 × 3.8 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PCF1063816-45	Aroflex part number
Thread Size	M16
Diameter A (mm)	138
Dimension B (mm)	106
Dimension P/C (mm)	45
Dimension D/E (mm)	38
Bolt Holes Centers (mm)	106
Overall Length (mm)	172
Load Capacity (kg)	45kg load class
Static Deflection (mm)	3
Material Options	NR/NBR
Shore Hardness	45/55/65/75
Features	Compact \| Elongated 14x18mm
Weight	0.45 kg
Dimensions	17.2 × 10.6 × 3.8 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

The PCF 1063816-45 Combi Mount is designed for 45kg per mount applications with M16 heavy-duty fastening. Its elongated bolt hole centers make it perfect for flexible mounting on non-standard equipment bases. This space-efficient isolator combines proven fail-safe construction with effective vibration damping for light to medium industrial equipment requiring compact installation solutions.

Key Features:

45kg Load Rating: Suitable for light to medium industrial equipment including small fans, pumps, and auxiliary machinery.
3mm Static Deflection: Quick response vibration damping for equipment across typical frequency ranges.
Elongated Bolt Hole Centers (14.0 x 18.0mm): Enables flexible mounting on non-standard bases.
M16 Robust Thread: Heavy-duty fastening for secure, vibration-resistant installation on industrial frames.
Compact Footprint: 138-146mm overall length ideal for space-constrained installation scenarios.
Material Options: Natural rubber (NR) or nitrile (NBR) with 45-75 Shore hardness choices available.

Ideal applications include compact equipment isolation, fan mounting, pump support, motor damping, and lightweight machinery isolation in confined spaces.

Please Click Here to view our Mounts Information Reference, should you require further information.
