PCF 623112-60 Combi Mount (M14)

Name: PCF 623112-60 Combi Mount (M14) | UK Stock | Arrow Engineering
SKU: PCF623112-60
Price: 34.39 GBP
Availability: InStock

£34.39

ex. VAT · £41.27 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Thread Size

M12

Diameter A (mm)

Dimension B (mm)

Dimension P/C (mm)

Dimension D/E (mm)

Bolt Holes Centers (mm)

Overall Length (mm)

106

Load Capacity (kg)

60kg load class

Static Deflection (mm)

Material Options

NR/NBR

Shore Hardness

45/55/65/75

Features

Compact | Medium load

Weight

0.60kg

Dimensions (L × W × H)

10.6 × 6 × 3.1 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PCF623112-60	Aroflex part number
Thread Size	M12
Diameter A (mm)	60
Dimension B (mm)	60
Dimension P/C (mm)	60
Dimension D/E (mm)	31
Bolt Holes Centers (mm)	60
Overall Length (mm)	106
Load Capacity (kg)	60kg load class
Static Deflection (mm)	3
Material Options	NR/NBR
Shore Hardness	45/55/65/75
Features	Compact \| Medium load
Weight	0.60 kg
Dimensions	10.6 × 6 × 3.1 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

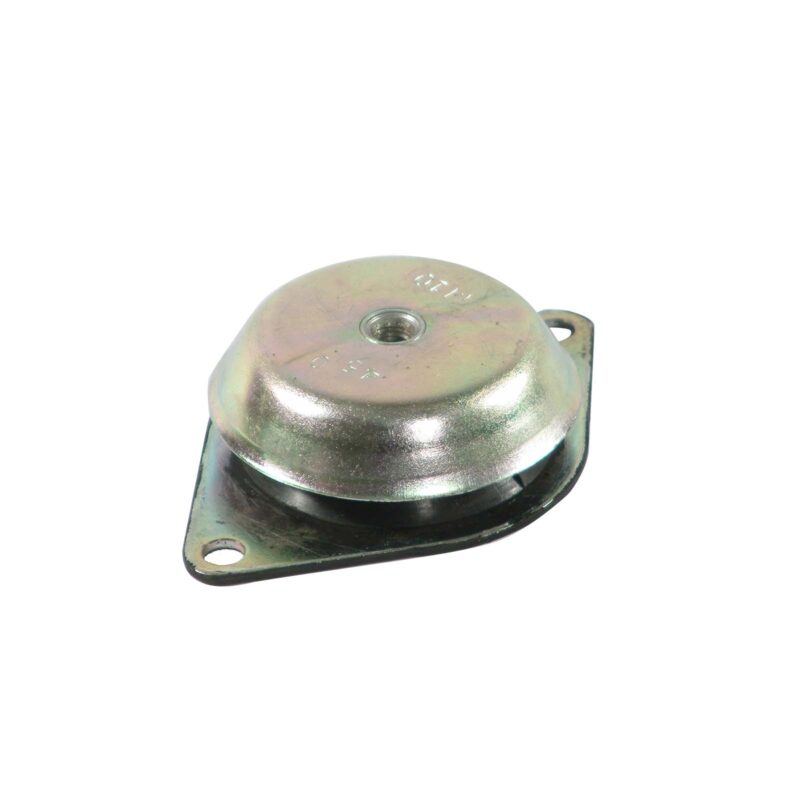

The PCF 623112-60 Combi Mount combines 60kg load capacity with compact design and M12 fastening. This mid-range isolator delivers excellent vibration isolation for medium-duty industrial equipment in space-efficient installations. Its proven fail-safe construction and versatile capacity make it suitable for diverse applications requiring compact yet effective vibration damping.

Key Features:

60kg Capacity: Perfect for mid-range industrial equipment including fans, compressors, pumps, and motors.
3mm Static Deflection: Optimized for effective shock absorption and vibration damping across industrial frequencies.
60mm Bolt Hole Centers: Compact spacing with M12 fastening for secure installation on industrial bases.
M12 Heavy-Duty Thread: Robust fastening ensures vibration-resistant mounting on equipment frames.
Compact Size: 106mm overall length provides space efficiency without compromising performance.
Material Flexibility: Available in natural rubber (NR) or nitrile (NBR) with 45-75 Shore hardness choices.

Best applications include industrial fan isolation, compressor mounting, pump support, motor damping, and medium-duty equipment isolation in compact installations.

Please Click Here to view our Mounts Information Reference, should you require further information.
