SKU: SE38 Tensioner Arm Rosta SE Tensioner Arm

SE38 Tensioner Arm

£158.71

ex. VAT£190.45 inc. VAT
In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.
Technical Specifications
Product Type
Automatic Tensioner Element
Component Series
ROSTA SE Tensioner Arm
Model Size
SE 38
Mounting Screw
M20 Central Bolt
Pretension Angle
±30° Maximum Working Deflection
Tensioning Force
000 N (450 lbf), Up to 2
Arm Length
175 mm center-to-center
Chain / Belt Pitch
Suits 3/4" (12B) & 1" (16B) Chain
Number of Teeth
N/A
Roller Dimensions
N/A
Bearing Spec
Maintenance-Free Rubber Suspension Core
Material & Finish
Heavy Steel Arm, Spheroidal Cast Iron Housing
Compatible Units
N3/4"-20S & N1"-20S Sprockets, R38 Roller
Operating Temp
-40°C to +80°C (-40°F to +176°F)
Weight
0.1kg
ParameterValueNotes
SKU SE38 Tensioner Arm Aroflex part number
Product Type Automatic Tensioner Element
Component Series ROSTA SE Tensioner Arm
Model Size SE 38
Mounting Screw M20 Central Bolt
Pretension Angle ±30° Maximum Working Deflection
Tensioning Force 000 N (450 lbf), Up to 2
Arm Length 175 mm center-to-center
Chain / Belt Pitch Suits 3/4" (12B) & 1" (16B) Chain
Number of Teeth N/A
Roller Dimensions N/A
Bearing Spec Maintenance-Free Rubber Suspension Core
Material & Finish Heavy Steel Arm, Spheroidal Cast Iron Housing
Compatible Units N3/4"-20S & N1"-20S Sprockets, R38 Roller
Operating Temp -40°C to +80°C (-40°F to +176°F)
Weight 0.1 kg
Certification ISO 9001:2015 Quality assured

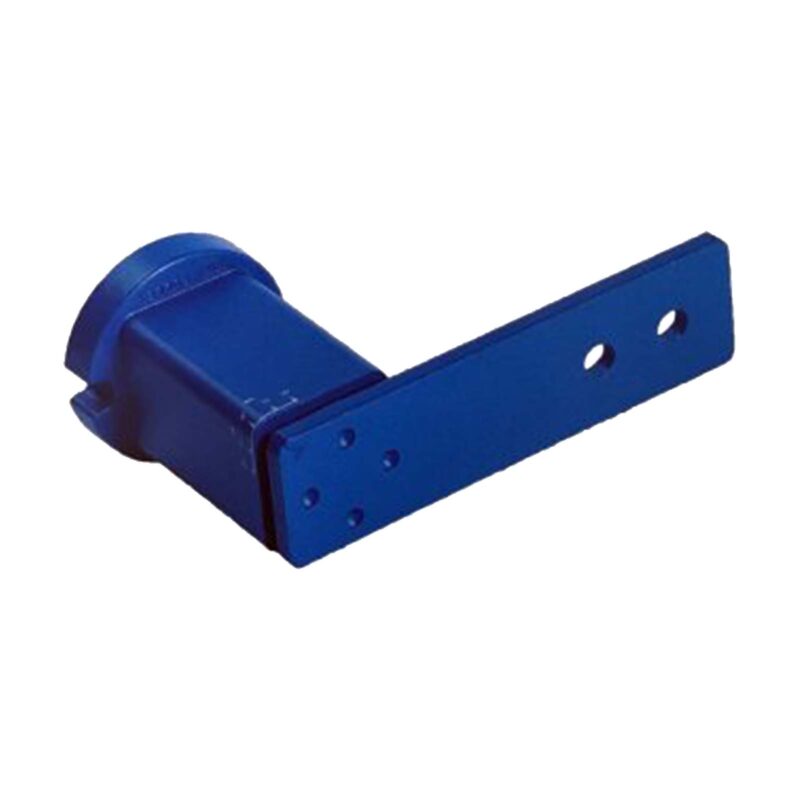

The ROSTA SE 38 Standard Tensioner Arm is a world-renowned, maintenance-free elastomeric rubber suspension device engineered for automatic tensioning of industrial chain drives and belt systems. Featuring an integrated multi-directional rubber insert suspension, the SE 38 automatically compensates for drive elongation, dampens cyclic vibrations, and prevents slack-side whip and shock-loading across machinery drives.

Key Engineering Specifications & Performance Advantages

  • Automatic Self-Tensioning: Continuously adjusts to chain or belt stretch, preventing slack vibration, tooth skip, and premature fatigue.
  • Tensioning Capacity: Delivers a pretension force of Up to 2,000 N (450 lbf) over a maximum working angle of ±30° Maximum Working Deflection.
  • Maintenance-Free Rubber Core: Four pre-stressed natural rubber inserts provide continuous elastomeric damping without springs, hydraulic fluid, or routine relubrication.
  • Heavy-Duty Housing: Constructed from Spheroidal Cast Iron Housing, Heavy Steel Arm with an arm center length of 175 mm center-to-center.
  • Single-Bolt Mounting: Secure M20 Central Bolt central mounting enables 360° rotational positioning around the pivot axis.
  • Versatile Drive Integration: Fully compatible with R38 Roller, N3/4″-20S & N1″-20S Sprockets.

Typical Industrial Applications

Ideal for agricultural harvesting machinery, manufacturing assembly lines, timber processing conveyors, packaging machines, industrial fans, crushers, and pump drives.
