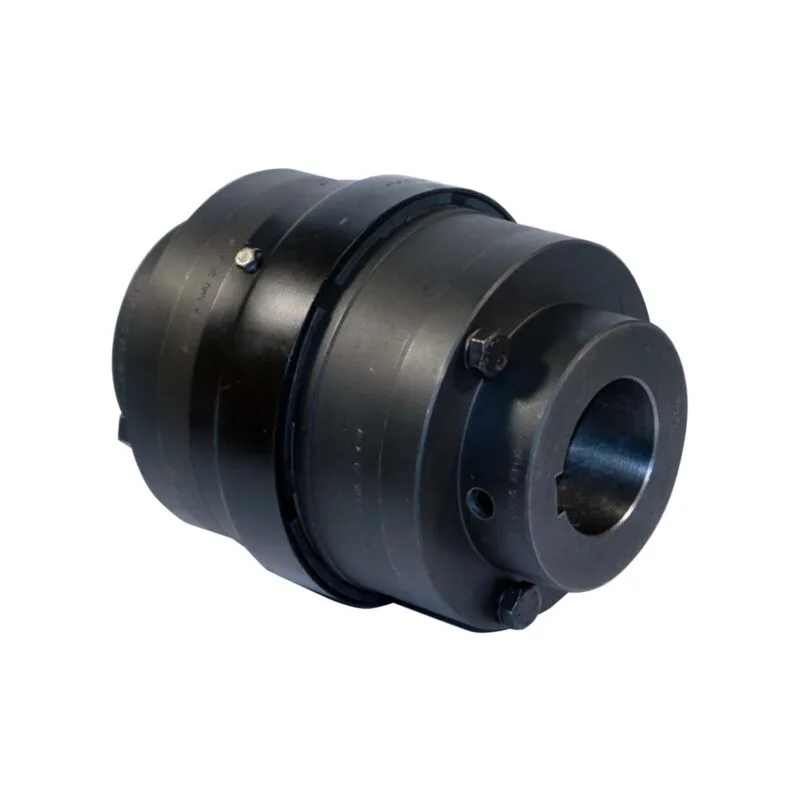

SWQ2300 180mm DBSE Complete Spacer Coupling
- Spacer type coupling using Snapwrap/T cushions as flexible elements.
- Snapwraps are available from SWQ-095 to SWQ-225 and T cushions are available from SWQ-226 to SWQ-350 sizes.
- Individual replacement of T cusion reduces replacement cost.
- Used where rapid disconnection without disturbing the drive or driven unit is required.
4) SW Ring, 5) Chease Head Screw, 7) Hex. Head Screw, 13) Spacer, 17) Snapwrap, 26) Adapter?
Assembly Procedure for SWQ Couplings
After ensuring that the equipments are aligned properly, follow the instructions as given below for assembly of couplings. For SWQ Couplings, take the spacer jaw body assembly with the inside & outside rings without elastomeric elements. Insert spacer assembly in the steps provided in the adapters. Tighten the bolts with the torque that is given. Wrap the snap wrap(s)/insert cushions of required size in the space between jaws. Then slide the outer ring over the snap wrap(s)/cushions accordingly and fix it to the hub with the help of screws/bolts along with the washers.
