Core Mount 772-A

Name: Core Mount 772-A | UK Stock | Arrow Engineering
SKU: PB-P-772-A
Price: 30.08 GBP
Availability: InStock

£30.08

ex. VAT · £36.10 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Max Load

400kg

Max Deflection

7.0mm

Feature

Light-duty | mobile

Weight

0.92kg

Dimensions (L × W × H)

10.5 × 9.2 × 5.6 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PB-P-772-A	Aroflex part number
Max Load	400kg
Max Deflection	7.0mm
Feature	Light-duty \| mobile
Weight	0.92 kg
Dimensions	10.5 × 9.2 × 5.6 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

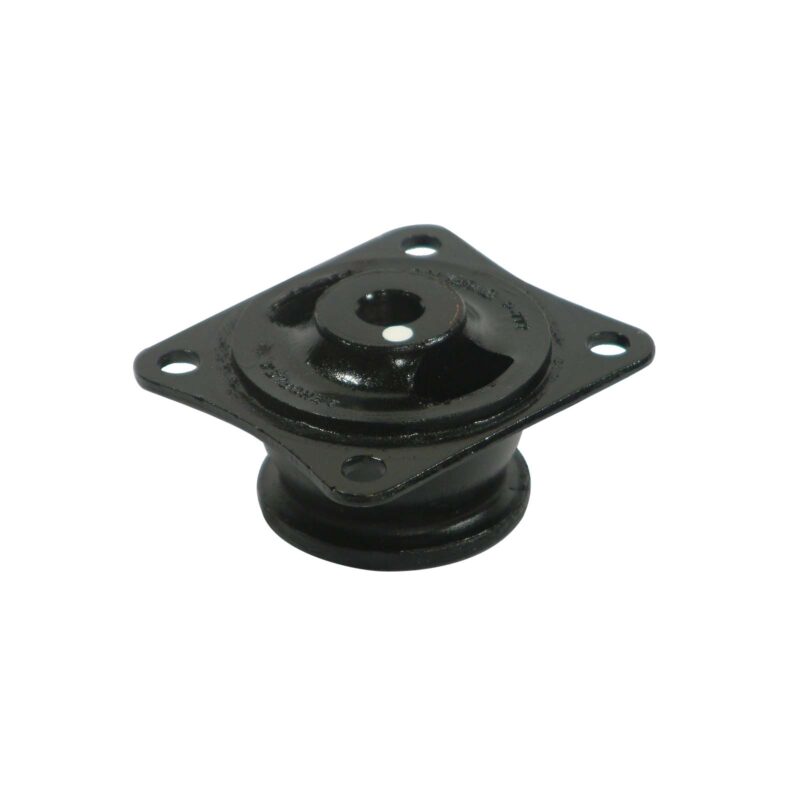

The Core Mount 772-A is a light-duty, high-deflection vibration isolator rated for 400kg load capacity. This compact core mount delivers reliable vibration isolation and fail-safe protection for light to medium equipment requiring high deflection and superior shock absorption. Its proven design makes it popular for mobile and stationary applications.

Key Features:

400kg Load Rating: Suitable for light to medium-duty equipment mounting and mobile application isolation.
High Deflection (7.0mm max): Extended static deflection provides effective vibration damping and superior shock absorption.
Shear & Compression Design: Rubber works in both directions for versatile load handling and multi-directional damping.
Fail-Safe Assurance: Built-in mechanical stop ensures continued operation even under severe shock conditions.
Mobile Application Proven: Popular choice for mobile equipment and transportation mounting with high isolation performance.
Snubbing Washers Required: Proper installation ensures maximum load capacity and shock absorption performance.

Ideal for light equipment isolation, mobile machinery mounting, vehicle suspension damping, and general-purpose shock isolation in compact installations.

Please click here to view our Mounts Information Reference, should you require further information.
