SKU: NPX-080-1T
NPX Taper Bored
NPX 080T Part 1 Taper Bore Hub (1108)
£78.55
ex. VAT · £94.26 inc. VAT
JS9 Tight Fit Anti-Roll
H7 Precision Transition Fit
ISO 9001 Quality Assured
Technical Specifications
Power at 100 rev/min kW
0.63
Rated Torque Nm
60
Max Torque Nm
180
Max Speed rev/min
5210
Bush for F flange
1108
Max Bore d1/d2 (mm)
32
D (mm)
80
L1 (mm)
22.5
A (mm)
22.5
Weight Part 1 (kg)
0.75
Weight
0.75kg
Dimensions (L × W × H)
8 × 2.25 × 2.25 cm
Overall envelope
Standards & Fit
JS9
JS9 Keyway
Tight fit anti-roll standard
H7
Precision Transition Fit
Precision bore fit
ISO
ISO 9001:2015
Quality Assured
| Parameter | Value | Notes |
|---|---|---|
| SKU | NPX-080-1T | Aroflex part number |
| Power at 100 rev/min kW | 0.63 | |
| Rated Torque Nm | 60 | |
| Max Torque Nm | 180 | |
| Max Speed rev/min | 5210 | |
| Bush for F flange | 1108 | |
| Max Bore d1/d2 (mm) | 32 | |
| D (mm) | 80 | |
| L1 (mm) | 22.5 | |
| A (mm) | 22.5 | |
| Weight Part 1 (kg) | 0.75 | |
| Weight | 0.75 kg | |
| Dimensions | 8 × 2.25 × 2.25 cm | Overall envelope |
| Bore Tolerance | H7 | Precision transition fit |
| Material | Steel / Friction disc | Standard construction |
| Certification | ISO 9001:2015 | Quality assured |

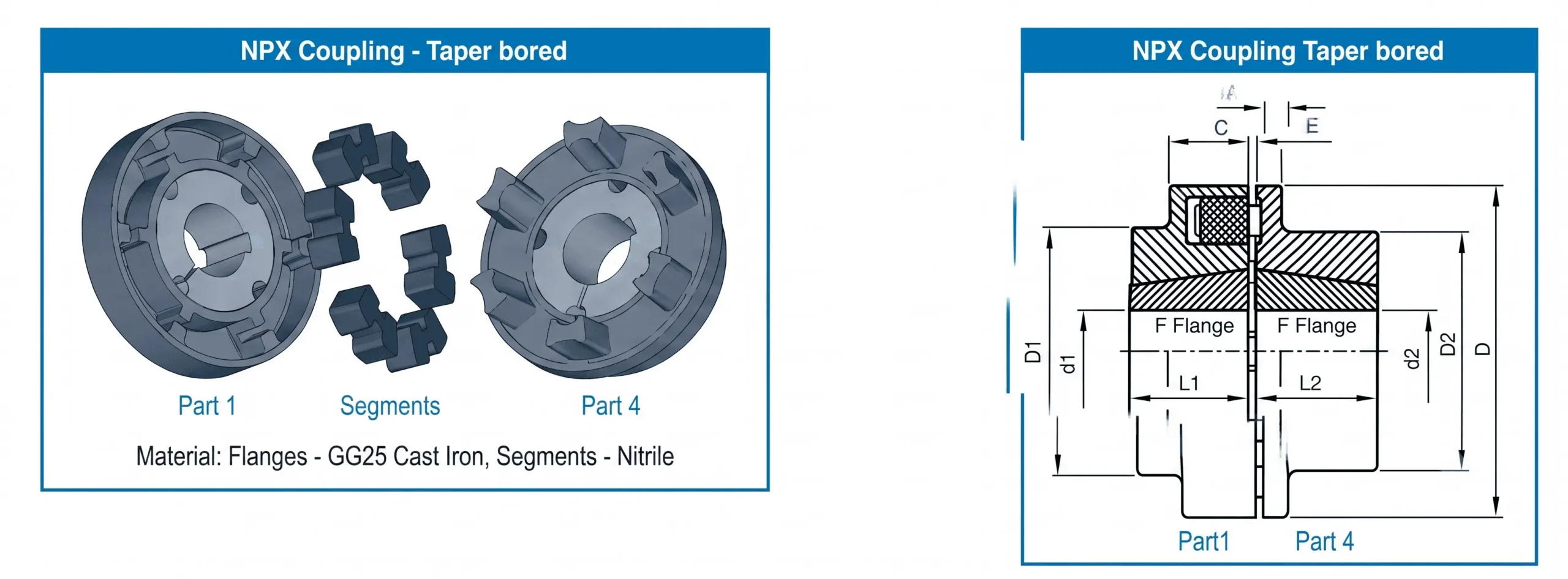

NPX 080T Part 1 Taper Bore Hub (1108)
The NPX 080T Part 1 Taper Bore Hub is an integrated component of the high-performance NPX flexible coupling range. Specifically designed to accommodate a standard 1108 taper lock bush, this Part 1 hub facilitates a fast, secure, and secure wedge-fit mount onto the shaft, minimizing installation time and eliminating the need for complex custom reboring. Constructed from premium materials, it provides outstanding torsional rigidity, working alongside elastomeric elements to efficiently absorb mechanical shock loads and angular misalignments.
Key Features
- 1108 Taper Lock Bush Compatibility: Allows for seamless and efficient mounting using readily available standard taper bushes.
- Part 1 Hub Engineering: Acts as the foundational driver side or mating section within the interlocking jaw assembly.
- Simplified Maintenance: True taper-fit design simplifies mounting and extraction, drastically reducing plant downtime.
- Robust Vibration Dampening: Dampens harsh industrial vibrations to secure and extend the lifetime of surrounding bearings and gearboxes.
Technical Specifications & Dimensions
