SKU: PB-PC-100-A PC Combi Mounts

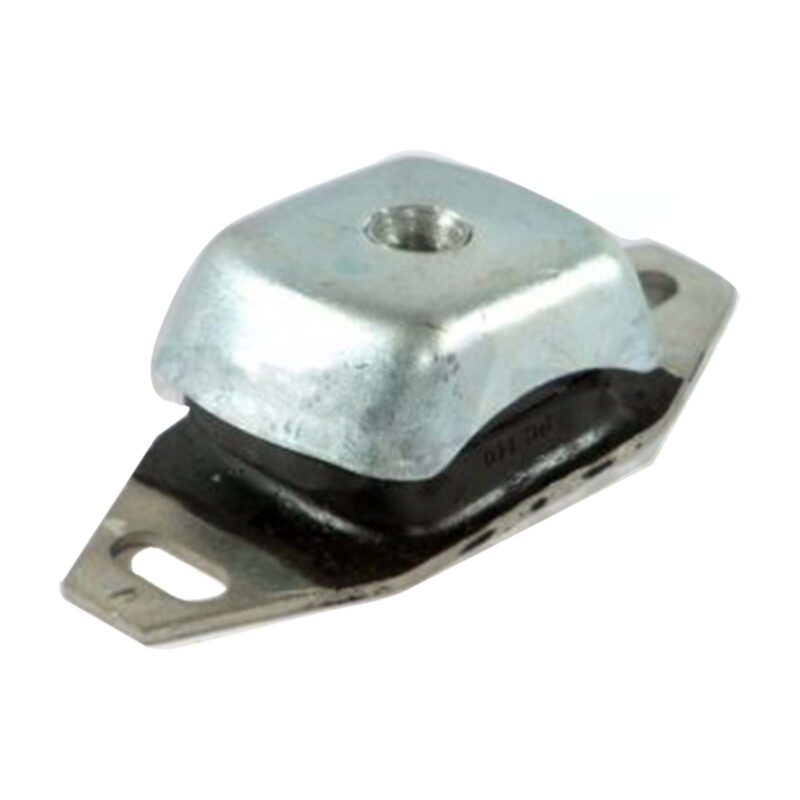

PC Combi Mount 100-A (M12)

Name: PC Combi Mount 100-A (M12) | UK Stock | Arrow Engineering
SKU: PB-PC-100-A
Price: 42.98 GBP
Availability: InStock

£42.98

ex. VAT · £51.58 inc. VAT

JS9 Tight Fit Anti-Roll H7 Precision Transition Fit ISO 9001 Quality Assured

In Stock — Dispatches within 24 hours. Bulk orders (10+) available — call for lead time.

Technical Specifications

Thread Size

M12

Diameter A (mm)

100

Dimension B (mm)

~120

Dimension P/C (mm)

Dimension D/E (mm)

~50

Bolt Holes Centers (mm)

100

Overall Length (mm)

~120

Load Capacity (kg)

Static Deflection (mm)

2-3

Material Options

NR/NBR

Shore Hardness

45/55/65/75

Features

Fail-safe | Low profile

Weight

0.5kg

Dimensions (L × W × H)

11.7 × 6 × 3.8 cm

Overall envelope

Standards & Fit

JS9

JS9 Keyway Tight fit anti-roll standard

Precision Transition Fit Precision bore fit

ISO

ISO 9001:2015 Quality Assured

Parameter	Value	Notes
SKU	PB-PC-100-A	Aroflex part number
Thread Size	M12
Diameter A (mm)	100
Dimension B (mm)	~120
Dimension P/C (mm)	15
Dimension D/E (mm)	~50
Bolt Holes Centers (mm)	100
Overall Length (mm)	~120
Load Capacity (kg)	50
Static Deflection (mm)	2-3
Material Options	NR/NBR
Shore Hardness	45/55/65/75
Features	Fail-safe \| Low profile
Weight	0.5 kg
Dimensions	11.7 × 6 × 3.8 cm	Overall envelope
Bore Tolerance	H7	Precision transition fit
Certification	ISO 9001:2015	Quality assured

The PC Combi Mount 100-A is a lightweight vibration isolator designed for 50kg per mount capacity. This compact, reliable mount delivers effective vibration isolation for light equipment, control systems, and auxiliary machinery with proven fail-safe reliability. Its compact footprint and lightweight construction make it ideal for applications requiring space-efficient mounting with dependable vibration damping.

Key Features:

50kg Load Capacity: Perfect for light equipment including small pumps, fans, controls, and auxiliary devices.
Quick Response Deflection (2-3mm): Responsive vibration damping suitable for light-duty applications.
Fail-Safe Design: Built-in mechanical stop ensures continued operation even if elastomer element degrades.
M12 Secure Thread: Heavy-duty fastening provides vibration-resistant installation on light equipment frames.
Ultra-Compact Size: 100mm diameter with low profile is ideal for space-constrained mounting locations.
Elastomer Selection: Natural rubber (NR) or nitrile (NBR) with 45-75 Shore hardness options available.

Ideal for small equipment isolation, control panel damping, light pump mounting, auxiliary machinery support, and equipment suspension in confined spaces.

Please Click Here to view our Mounts Information Reference, should you require further information.
