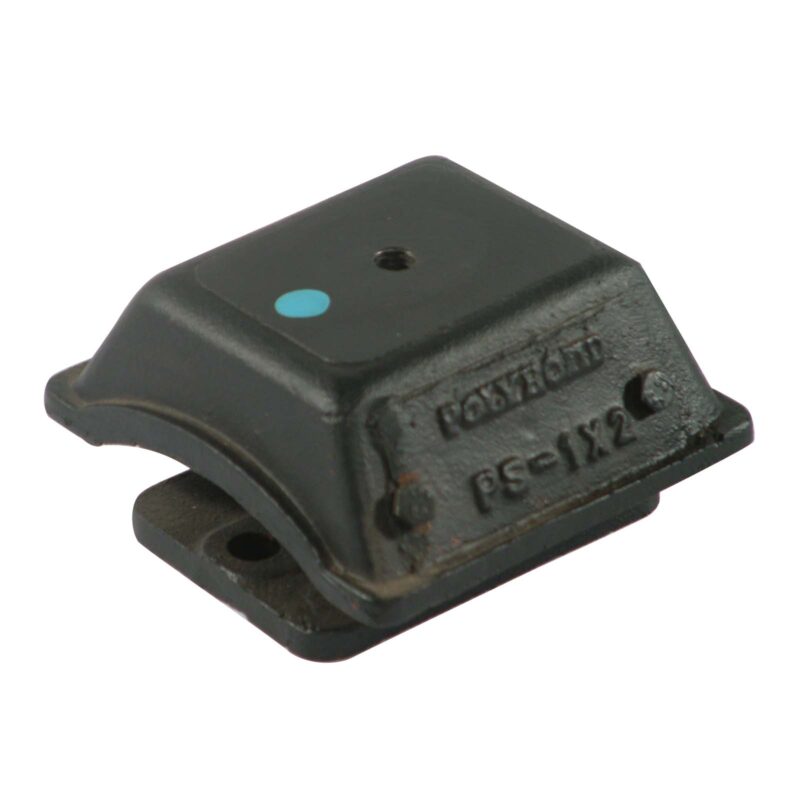

PS Combi Mount 1X2A (M12) – Polybond COMBI MOUNTS PS consist of two PS type sandwich mounts housed together in specially designed iron castings for protection against oil and mechanical damage. These are special mountings with natural frequencies down to 5.5 Hz and very good lateral stability. For low disturbing frequencies, high deflection can be achieved by screwing two COMBI MOUNTS PS together along the flange. When they cannot be bolted, these mounts can be located by rubber friction pads – For More Information Click Here
PS Combi Mount 1X2A (M12)
£76.99 (£64.16 ex. VAT)
Weight | 0.5 kg |
---|---|
Dimensions | 23 × 20.4 × 7.4 cm |
Only logged in customers who have purchased this product may leave a review.
Bolt Hole Centres | 90mm |
---|---|
Bolt Hole Diameter | 12.7mm |
Deflection | 5.6mm |
Length | 112mm |
Max Load | 77kg |
Width | 132mm |
Height | 74mm |
