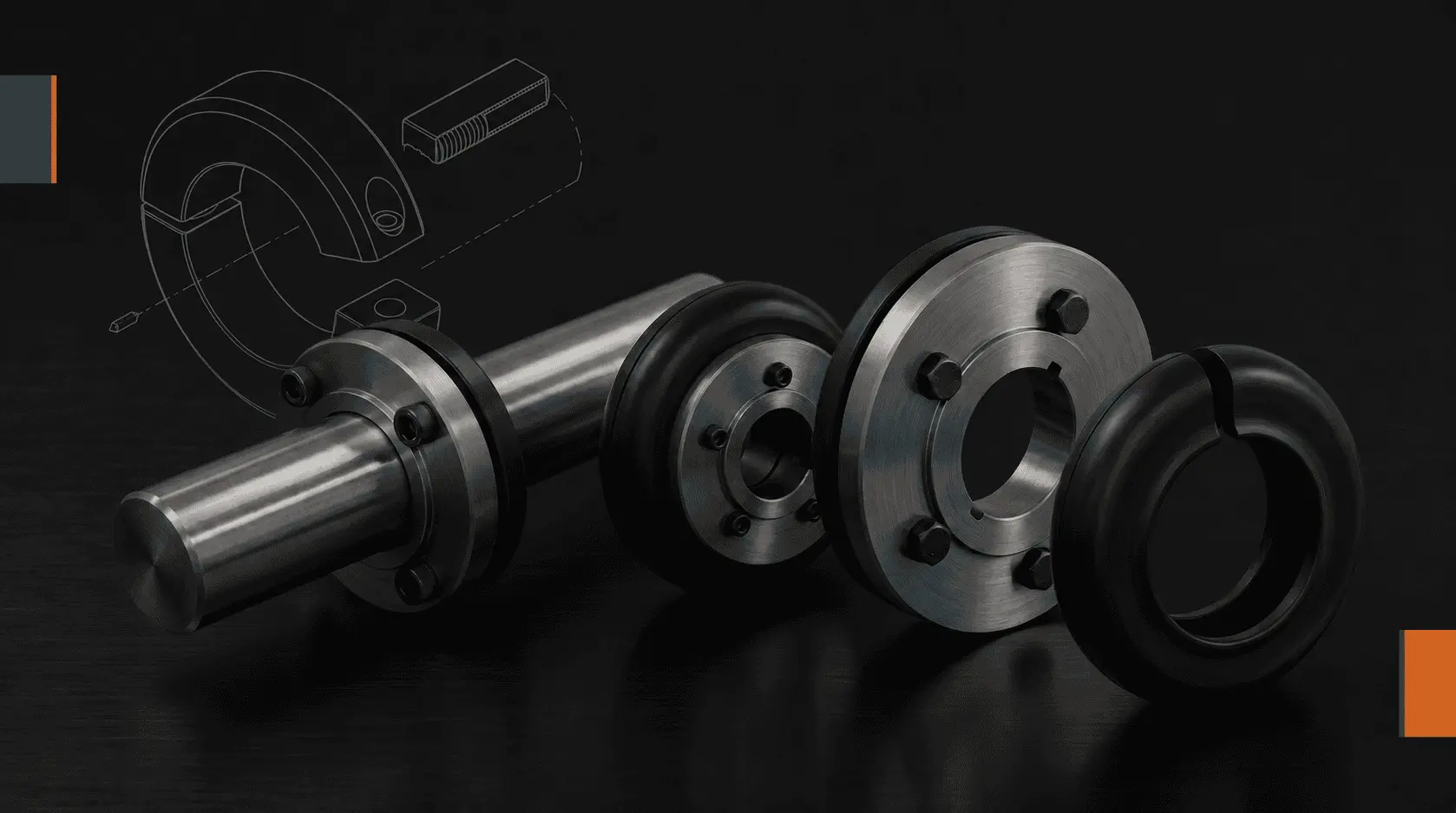

Tyre Couplings

Arrow stock a range of the highly flexible Tyre Couplings. Consisting of two flanges, the two halves are joined by a rubber tyre. The tyre itself is torsional, soft and flexible; this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.

Boring, Keywaying, Splining and Broaching facilities are available, please check out our prices in the In-House Engineering section of this website. Please Click Here email us with drawings or samples of any special requirements.

For help selecting the right Coupling suited to you, please Click Here to visit the Frequently Asked Questions page.
